LYNC-715-7433G8

LYNC-715-7433G8

Arbor
ART. NR.:: 80059000

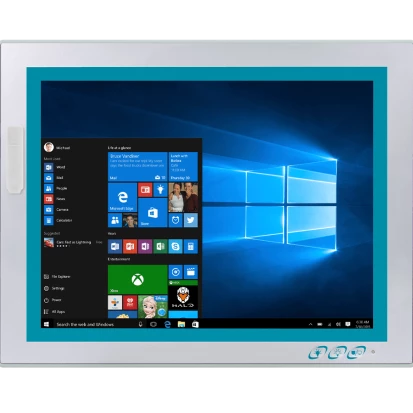

15" Fanless Panel PC, 1024x768, 350cd/m2, Resistive Touch, Intel Atom x7433RE CPU, 8GB (Up to 16GB) DDR5 RAM, DP, 2x2.5GbE LAN, 4xCOM, 2xUSB 3.2, 3x2.0, 1x2.5" Drive Bay, 1xM.2 Key-M (SATA), 1xM.2 Key-B, 1xM.2 Key-E, Audio Opt., 9-36VDC-in
Preis auf Anfrage
Verfügbar
Verfügbar

Aufbau
Gehäuse
Gehärteter Stahl
Einbaumöglichkeit
Wall, Panel, Wall VESA 100, Wall VESA 75
Schutzlevel Frontseite (Panel)
IP65
Typ
Lüfterlos
Display
Bildschirmtyp
LCD TFT
Diagonale
15 "
Maximale Auflösung
1024x768 Dots
Seitenverhältnis
4:3
Helligkeit
350 Cd/m2
Touch Screen
Touch Screen Art
resistiv
CPU
CPU Generation/Familie
Amston Lake
Installierter Prozessor
Intel Atom x7433RE
Socket
FCBGA1264
Maximale CPU-Frequenz
3.4 GHz
Chipsatz
Chipsatz
Intel Atom SoC
Speicher
Formfaktor
DDR5
Socket Typ
1xSODIMM
ECC
No
Standard Onboard Speicher
8 GB
Maximum Speicher
16 GB
Bauweise
herausnehmbar
Grafik
Grafikcontroller
integriert im Prozessor
Ethernet
Controller Typ
Intel i226-LM
Ethernet gesamt
2
2,5 Gbit/s
2
Schnittstellen Seriell / Parallel
COM gesamt
4
RS-232/485
4
USB gesamt
5
USB 2.0
3
USB v3.x
2
Schnittstelle
SATA 3
1
M.2
1
Laufwerksschächte
Gesamtanzahl
1
2.5" intern
1
Steckplätze
Gesamtanzahl
3
M.2
3
M.2 Formfaktor
2242 M, 3052 B, 3042 B, 2242 B
Zusätzliche Funktionen
Watchdog-Timer-Typ
Software
Status LEDs / Schalter
LED
Power LED
Schalter
On/Off
Schnittstellen
Schnittstellen
4xDB9, 2xRJ45 Ethernet, 5xUSB, Display port, DC input (terminal block)
Stromversorgung
Eingangsspannung DC
9..36 V
Netzteil
Unterstützte Stromversorgung
External power adapter AC/DC
Software
Betriebssystemkompatibilität
Windows 10, Windows 11
Maße und Gewicht
Breite
390 mm
Höhe
310 mm
Tiefe
56.1 mm
Betriebsbedingungen
Maximale Betriebstemperatur
-20..55 °C
Luftfeuchtigkeit
10-95%
Normen und Zertifikate
Zertifizierungen
CE, FCC Class A
Maße
Bruttogewicht
5.3 kg
Nettogewicht
4.5 kg

Dokumente
LYNC-715-7433G8-Datasheet-Preliminary.pdf
