LYNC-715-4200G4

LYNC-715-4200G4

Arbor
ART. NR.:: 08079600

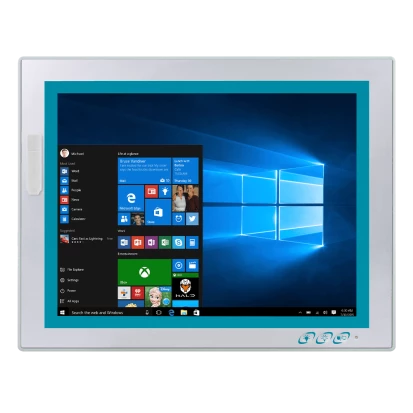

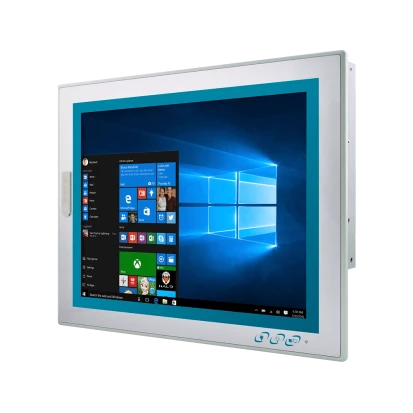

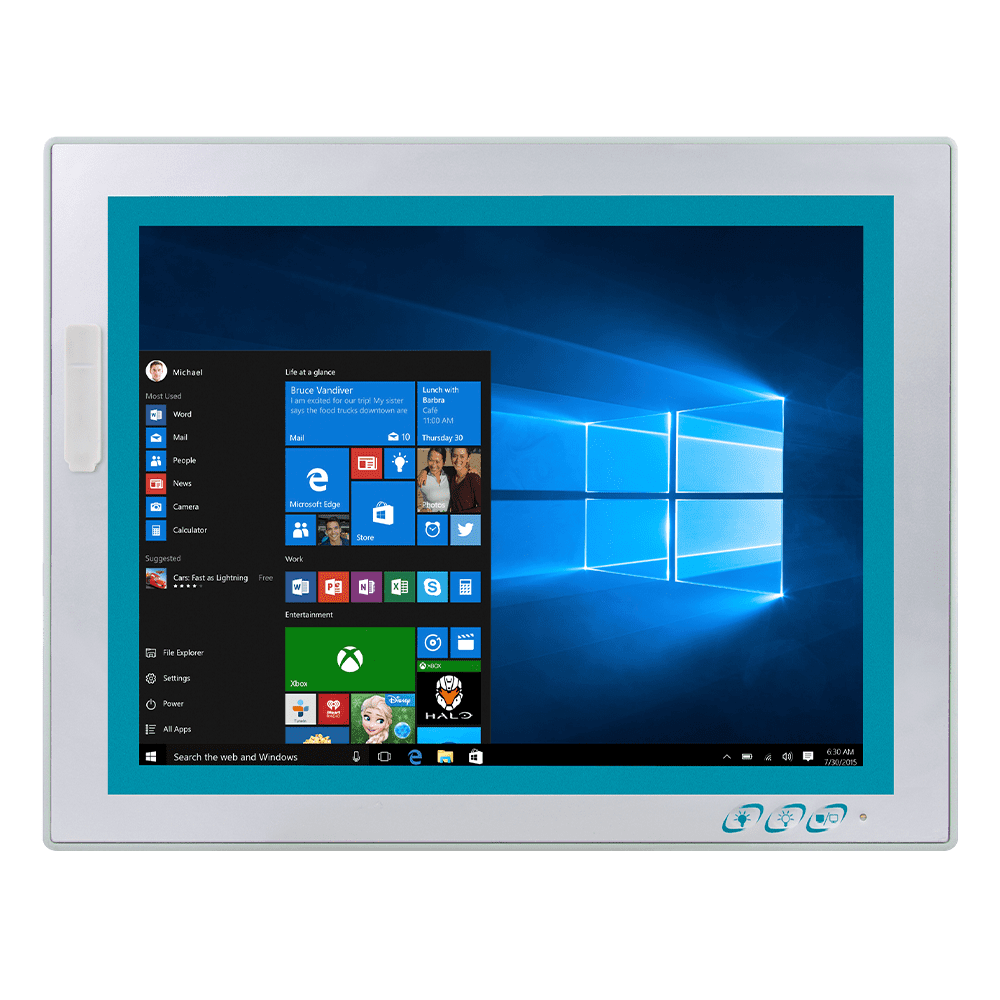

15" Fanless Industrial Panel PC, 1024x768 TFT LCD, 350cd/m2, Resistive Touch, Intel Pentium N4200 1.1GHz CPU, 4GB DDR3 RAM, DVI-I, 2xGbE LAN, 4xRS232/485, 5xUSB 2.0, CFast Slot, 1x2.5" Drive Bay, 1xFull-size Mini-card, 9-36VDC-in
Preis auf Anfrage
Verfügbar
Verfügbar

Aufbau
Gehäuse
Gehärteter Stahl
Einbaumöglichkeit
Wall, Panel, Wall VESA 100, Wall VESA 75
Schutzlevel Frontseite (Panel)
IP65
Typ
Lüfterlos
Display
Bildschirmtyp
LCD TFT
Diagonale
15 "
Maximale Auflösung
1024x768 Dots
Seitenverhältnis
4:3
Helligkeit
420 Cd/m2
Touch Screen
Touch Screen Art
resistiv
CPU
CPU Generation/Familie
Apollo Lake
Installierter Prozessor
Intel Pentium N4200
Socket
FCBGA1296
Maximale CPU-Frequenz
2.5 GHz
Chipsatz
Chipsatz
Intel Apollo Lake SoC
Speicher
Formfaktor
DDR3L
Socket Typ
Verlötet
ECC
No
Standard Onboard Speicher
4 GB
Bauweise
Onboard fixiert
Grafik
Grafikcontroller
integriert im Prozessor
Ethernet
Controller Typ
Intel i210-IT, Realtek 8111E
Ethernet gesamt
2
10/100/1000 Mbit/s
2
Schnittstellen Seriell / Parallel
COM gesamt
4
RS-232/485
2
USB gesamt
5
USB 2.0
5
Schnittstelle
SATA 3
1
Steckplätze
Gesamtanzahl
1
Mini-PCIe/Mini Card
1
Zusätzliche Funktionen
Watchdog-Timer-Typ
Software
Status LEDs / Schalter
LED
Power LED
Schalter
Kontrolltasten
Schnittstellen
Schnittstellen
4xDB9, DVI-I, 2xRJ45 Ethernet, 5xUSB, DC input (terminal block)
Stromversorgung
Eingangsspannung DC
9..36 V
Netzteil
Unterstützte Stromversorgung
External power adapter AC/DC
Software
Betriebssystemkompatibilität
Windows 10
Maße und Gewicht
Breite
389.93 mm
Höhe
309.93 mm
Tiefe
56.96 mm
Betriebsbedingungen
Maximale Betriebstemperatur
-20..55 °C
Luftfeuchtigkeit
10-95%
Vibration
5 ~ 500Hz, 2Grms Random
Schock
Operating 20G, 11ms
Normen und Zertifikate
Zertifizierungen
CE, FCC Class A
Maße
Bruttogewicht
4.5 kg
Nettogewicht
3.6 kg

Dokumente
LYNC-715-4200G4-User-Manual.pdf LYNC-715-4200G4-Datasheet.pdf
