iSN-812-MRTU

iSN-812-MRTU

ICP DAS
ART. NR.:: 09494700
DIN Rail Temperature measurement with IR camera 768 Pixels (32x24), Integrated thermal imaging and field image, Range -40..+300C, PoE Ethernet, Modbus TCP, 10-30VDC-in
Preis auf Anfrage
Verfügbar
Verfügbar

Aufbau
Gehäuse
Metallgehäuse
Einbaumöglichkeit
Wall, Magnetic mount
Netzwerk
Industrieprotokolle
Modbus RTU
Stromversorgung
Eingangsspannung DC
10..30 V
Schnittstellen Seriell / Parallel
COM gesamt
1
RS-485
1
Die Sensoren
Messbereich
-40...+300 °C
Auflösung
0.1 °C
Genauigkeit (+/-)
5 °C
Betriebsbedingungen
Maximale Betriebstemperatur
-10..70 °C
Maße und Gewicht
Breite
52 mm
Tiefe
33 mm
Höhe
94 mm
Maße
Bruttogewicht
0.1 kg
Nettogewicht
0.1 kg

Produktanfrage

ICP DAS
ART. NR.:: 09494700
iSN-812-MRTU
iSN-812-MRTU
iSN-812-MRTU
iSN-812-MRTU
iSN-812-MRTU
iSN-812-MRTU

Recommended products

DLW-1243 DLW-1243 DLW-1243 DLW-1243
ICP DAS
DLW-1243
Temperature/Humidity/wind speed/wind direction/NH3/CO/CO2 Data Logger Module, Ethernet/PoE, Modbus RTU/TCP, MQTT, IP54, RoHS, 12-48VDC
DL-11-BK DL-11-BK DL-11-BK DL-11-BK DL-11-BK
ICP DAS
DL-11-BK
Remote Temperature/Humidity/Atmospheric pressure/Dew Point Sensing Module, 1xCOM, Temperature Measurement -25..75 C, Atmospheric Pressure 300..1200 hPa, Humidity Measurement 0..95% RH, 10..30VDC, Operating Temperature -25..75 C
DL-11 DL-11 DL-11 DL-11 DL-11
ICP DAS
DL-11
Remote Temperature/Humidity/Atmospheric pressure/Dew Point Sensing Module, 1xCOM, Temperature Measurement -25..75 C, Atmospheric Pressure 300..1200 hPa, Humidity Measurement 0..95% RH, 10..30VDC, Operating Temperature -25..75 C
R-9019 R-9019 R-9019 R-9019 R-9019
ICP DAS
R-9019
Thermocouple Input Redundant Module, 16 Channels Analog Input, 2.2 W, Operating Temperature -25..70C
DLW-1200 DLW-1200 DLW-1200 DLW-1200
ICP DAS
DLW-1200
Temperature/Humidity/wind speed/wind direction Data Logger Module, Ethernet/PoE, Modbus RTU/TCP, MQTT, IP54, RoHS, 12-48VDC
DLW-1023 DLW-1023 DLW-1023 DLW-1023
ICP DAS
DLW-1023
PM1/2.5/10/Temperature/Humidity/wind speed/wind direction/pressure/illuminance/sea level/CO/CO2 Data Logger Module, Ethernet/PoE, Modbus RTU/TCP, MQTT, IP54, RoHS, 12-48VDC
DL-100TM485PS-W DL-100TM485PS-W DL-100TM485PS-W DL-100TM485PS-W
ICP DAS
DL-100TM485PS-W
Modbus RTU Protocol Based IP66 RS-485 Remote Temperature and Humidity Data Logger with LCD Display, High Accuracy, White Cover, IP66, 10-30VDC-in, RoHS
DL-100TM485S DL-100TM485S DL-100TM485S DL-100TM485S
ICP DAS
DL-100TM485S
Modbus RTU Protocol Based IP66 RS-485 Remote Temperature and Humidity Data Logger with LCD Display, Black Cover, IP66, 10-30VDC-in, RoHS
DLW-1100 DLW-1100 DLW-1100 DLW-1100
ICP DAS
DLW-1100
Temperature/Humidity/wind speed/wind direction/pressure/illuminance/sea level Data Logger Module, Ethernet/PoE, Modbus RTU/TCP, MQTT, IP54, RoHS, 12-48VDC

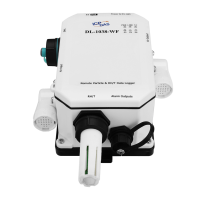

DL-1038-WF DL-1038-WF DL-1038-WF DL-1038-WF
