IB1000

IB1000

Arbor
ART. NR.:: 57853600

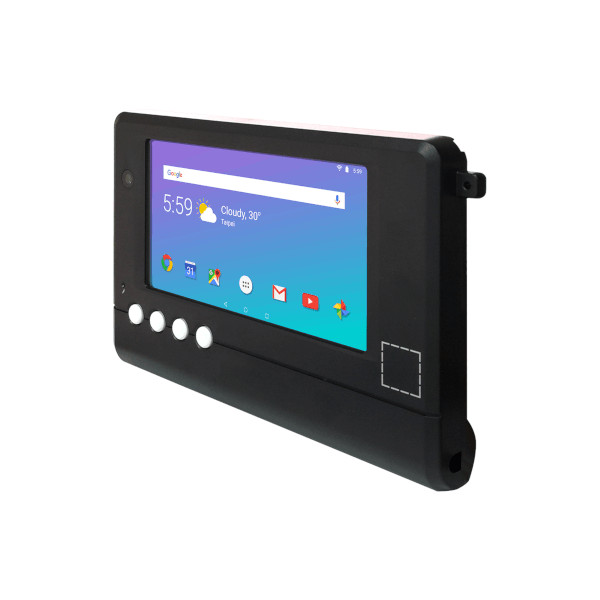

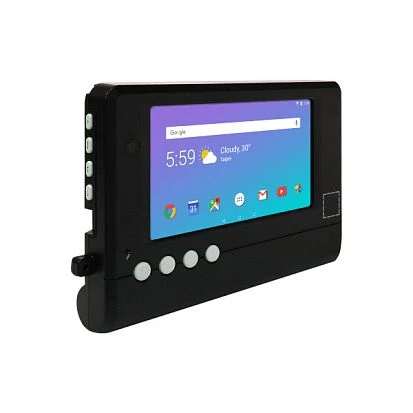

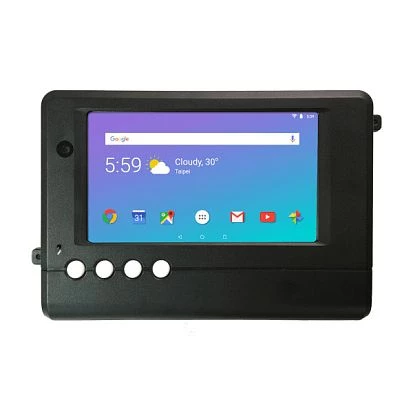

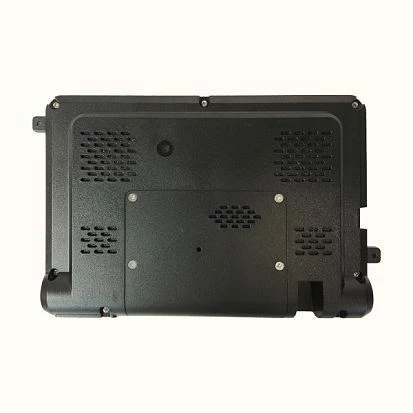

7" Rugged Tablet PC, 800x480, 400cd/m2, Resistive Touch, IP42, Freescale i.MX6 Quad-Core CPU, 1GB LPDDR2 RAM, 8GB eMMC, MicroSD, 2xMini-USB, SIM, 5MP Front, 5MP Rear, WiFi/BT/3G, GPS, Audio/Mic, 1050mAh, 12VDC-In, -10..70C
Preis auf Anfrage
Verfügbar
Verfügbar

Aufbau
Gehäuse
Kunststoffgehäuse
Schutzlevel Gehäuse
IP42
Typ
Lüfterlos
Display
Bildschirmtyp
LCD TFT
Diagonale
7 "
Maximale Auflösung
800x480 Dots
Helligkeit
400 Cd/m2
Kontrastverhältnis
500~1
Touch Screen
Touch Screen Art
resistiv
CPU
Installierter Prozessor
NXP i.MX6 quad-core
Socket
CPU onboard
Chipsatz
Chipsatz
SoC
Speicher
Formfaktor
DDR2
Socket Typ
Verlötet
ECC
No
Standard Onboard Speicher
1 GB
Bauweise
Onboard fixiert
Grafik
Grafikcontroller
integriert im Prozessor
Wi-Fi
WLAN IEEE-Norm
802.11b/g/n
Schnittstellen Seriell / Parallel
USB gesamt
2
USB 2.0
2
Schnittstelle
MicroSD Speicherkarten-Slots
1
Einbauschacht
Massenspeicher Typ
SSD
Massenspeicher-Formfaktor
eMMC
Massenspeicher 1. Kapazität
8 GB
Massenspeicher 2. Kapazität
8 GB
Steckplätze
SIM-Karten Steckplätze
Yes, 1
Zusätzliche Funktionen
Frontkamera
5 MP
Rückseitige Kamera
5 MP
GPS
GPS
Antennen Eigenschaften
Mobilfunk
3G
Bluetooth
v3.0
Status LEDs / Schalter
LED
Power LED
Schalter
On/Off, 1xReset, Funktionstasten, Lautstärketasten
Schnittstellen
Schnittstellen
2xUSB, DC Input, MicroSD card slot
Stromversorgung
Eingangsspannung DC
12..12 V
Stromverbrauch
36 W
Netzteil
Unterstützte Stromversorgung
External power adapter AC/DC
Akku
Akku 1 Technologie
Li-ion
Akku 1 Kapazität
1050 mA*h
Software
Betriebssystem installiert
Android
Maße und Gewicht
Breite
247.5 mm
Höhe
160.2 mm
Tiefe
30.6 mm
Betriebsbedingungen
Maximale Betriebstemperatur
-10..70 °C
Luftfeuchtigkeit
10-90%
Vibration
20 to 1000 Hz @ 3 grms
Schock
11 ms @ 30G
Maße
Bruttogewicht
1.1 kg
Nettogewicht
0.86 kg

Dokumente
IB1000-Datasheet.pdf
