i-87K serielle Buserweiterungsmodule von ICP-DAS

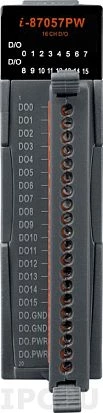

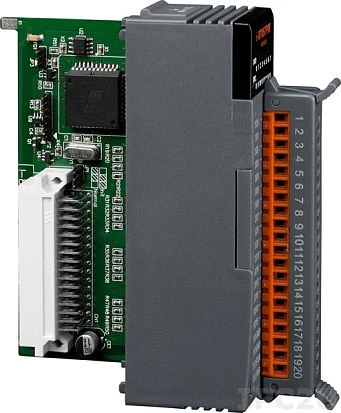

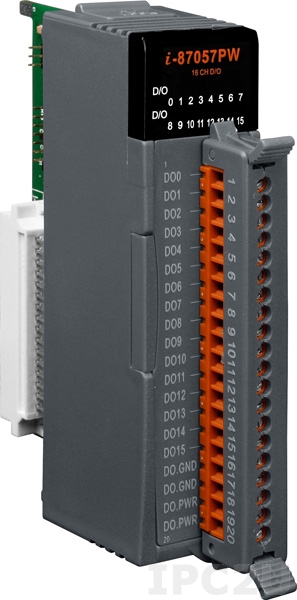

I-87057PW

I-87057PW

ART. NR.:: 05724300

Isolated 16 Channels Digital Output Module, High Profile

Preis auf Anfrage

Aufbau

Gehäuse

Kunststoffgehäuse

Zusätzliche Funktionen

Watchdog-Timer-Typ

Hardware, Software

Netzwerk

Industrieprotokolle

DCON slave

Erweiterungsmodul

COM

Serielle Schnittstelle

Digital Ausgang

Gesamtanzahl

16

Typ

Open-Collector

Sink/Source

Stromziehend (Sink)

Ausgangsspannung

5~50 V

Max. Ausgangsstrom

700 mA

Schnittstellen

Schnittstellen

Screw Terminal

Betriebsbedingungen

Maximale Betriebstemperatur

-25..75 °C

Maße

Bruttogewicht

0.21 kg

Nettogewicht

0.16 kg

Dokumente

Datasheet_I_87057W_I_87057PW__39176897.pdf Selection_Guide__26875234.pdf
