HT10

HT10

Arbor
ART. NR.:: 10143500

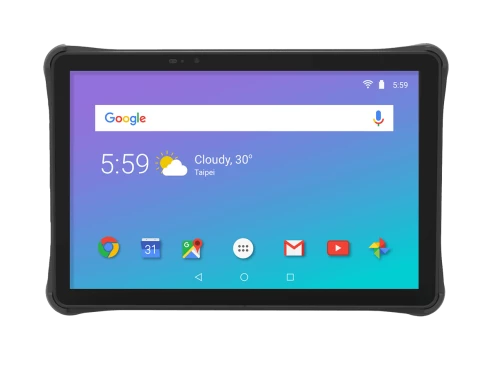

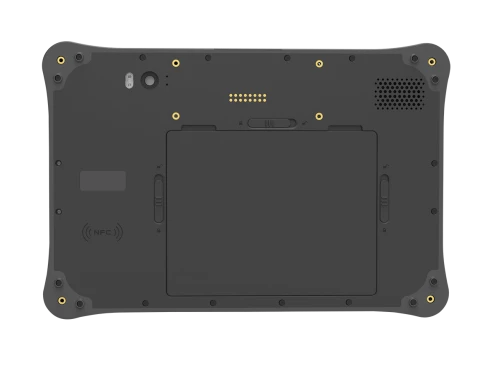

10.1" Rugged Tablet PC, 1920x1200, 400cd/m2, PCAP Touch, IP65, MediaTek MT8788 2GHz SoC, 4GB LPDDR4x RAM, 64GB UFS, MicroHDMI, MicroSD, 1xUSB Type, 2xSIM, 13/8MP R/F Cam., WiFi/BT/LTE, GPS, NFC, Audio/Mic, 10000mAh Li-ion Bat., 9/5VDC-In
Preis auf Anfrage
Verfügbar
Verfügbar

Aufbau
Gehäuse
Rugged Gehäuse
Schutzlevel Gehäuse
IP65
Typ
Lüfterlos
Display
Bildschirmtyp
LCD IPS
Diagonale
10.1 "
Maximale Auflösung
1920x1200 Dots
Seitenverhältnis
16:10
Helligkeit
400 Cd/m2
Touch Screen
Touch Screen Art
kapazitiv
CPU
Installierter Prozessor
MediaTek MT8788
Socket
CPU onboard
Maximale CPU-Frequenz
2 GHz
Chipsatz
Chipsatz
SoC
Speicher
Formfaktor
DDR4
Socket Typ
Verlötet
ECC
No
Standard Onboard Speicher
4 GB
Bauweise
Onboard fixiert
Grafik
Grafikcontroller
integriert im Prozessor
Wi-Fi
WLAN IEEE-Norm
802.11a/b/g/n/ac
Schnittstellen Seriell / Parallel
USB gesamt
2
Schnittstelle
MicroSD Speicherkarten-Slots
1
Einbauschacht
Massenspeicher Typ
SSD
Massenspeicher-Formfaktor
eMMC
Massenspeicher 1. Kapazität
64 GB
Steckplätze
SIM-Karten Steckplätze
2, Nano SIM
Zusätzliche Funktionen
Frontkamera
8 MP
Rückseitige Kamera
13 MP
GPS
GPS, GLONASS
NFC
Yes
Antennen Eigenschaften
Mobilfunk
2G, 4G
Bluetooth
v4.2
Status LEDs / Schalter
Schalter
On/Off, Lautstärketasten
Schnittstellen
Schnittstellen
SIM Card Slot, MicroSD card slot, Micro HDMI, USB Type A, USB type C
Docking Station
Ja
Stromversorgung
Eingangsspannung DC
5..9 V
Netzteil
Art der Spannungsversorgung
External power adapter AC/DC
Akku
Akku 1 Kapazität
10000 mA*h
Akku 1 Hotswap
Yes
Akku 2 Kapazität
1000 mA*h
Software
Betriebssystem installiert
Android
Maße und Gewicht
Breite
246.1 mm
Höhe
164.2 mm
Tiefe
15 mm
Betriebsbedingungen
Maximale Betriebstemperatur
-10..50 °C
Luftfeuchtigkeit
10-90%
Temperatur (Lagerung)
-30~+70
Normen und Zertifikate
Zertifizierungen
CE/FCC
Maße
Bruttogewicht
1.09 kg
Nettogewicht
0.89 kg

Dokumente
HT10-Datasheet.pdf HT10-2D-User-Manual.pdf

Produktanfrage

Arbor
ART. NR.:: 10143500
HT10
HT10
