GT78-VN-LTE

GT78-VN-LTE

Arbor
ART. NR.:: 57921100

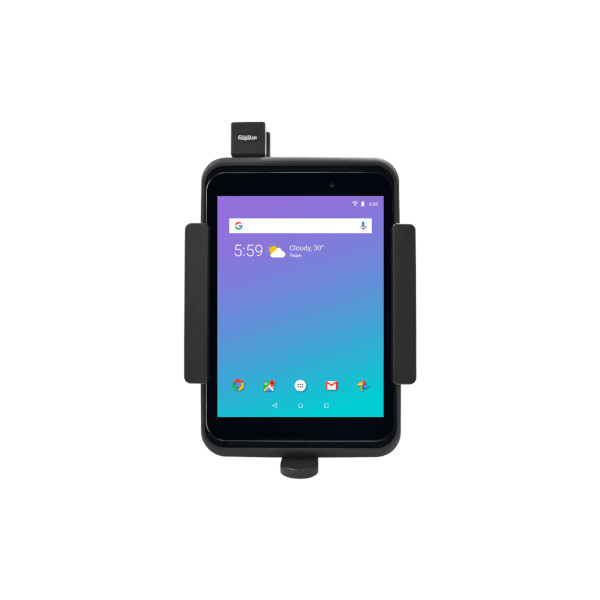

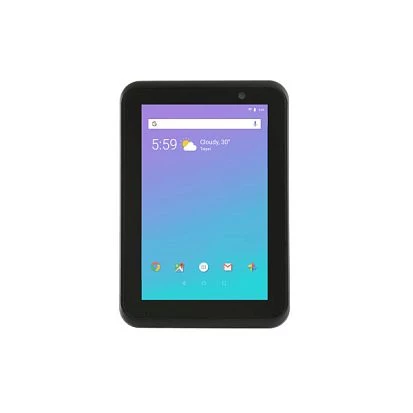

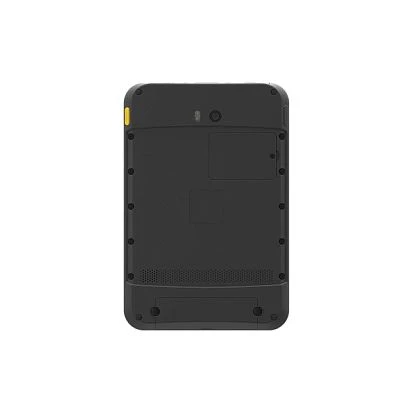

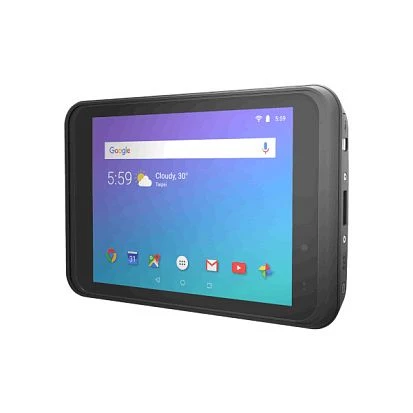

8" Rugged Tablet PC, 1280x800, 400cd/m2, PCAP Touch, IP65, MediaTek MT8788 2GHz SoC, 4GB LPDDR4 RAM, 64GB UFS, MicroSD, 1xUSB 2.0, 2xSIM, 8MP Front, 13MP Rear, WiFi/BT/LTE, GPS, NFC, Audio/Mic, 6200mAh Li-ion Bat., 9VDC-In, -10..55C
Preis auf Anfrage
Verfügbar
Verfügbar

Aufbau
Gehäuse
Kunststoffgehäuse
Schutzlevel Gehäuse
IP65
Typ
Lüfterlos
Display
Bildschirmtyp
LCD TFT
Diagonale
8 "
Maximale Auflösung
1280x800 Dots
Helligkeit
400 Cd/m2
Touch Screen
Touch Screen Art
kapazitiv
CPU
Installierter Prozessor
MediaTek MT8788
Socket
CPU onboard
Maximale CPU-Frequenz
2 GHz
Chipsatz
Chipsatz
SoC
Speicher
Formfaktor
DDR4
Socket Typ
Verlötet
ECC
No
Standard Onboard Speicher
4 GB
Bauweise
Onboard fixiert
Grafik
Grafikcontroller
integriert im Prozessor
Wi-Fi
WLAN IEEE-Norm
802.11a/b/g/n/ac
Schnittstellen Seriell / Parallel
USB gesamt
1
USB 2.0
1
Schnittstelle
MicroSD Speicherkarten-Slots
1
Einbauschacht
Massenspeicher Typ
SSD
Massenspeicher 1. Kapazität
64 GB
Steckplätze
SIM-Karten Steckplätze
Yes, 2, Micro-SIM
Zusätzliche Funktionen
Frontkamera
8 MP
Rückseitige Kamera
13 MP
GPS
GPS, GLONASS
NFC
Yes
Antennen Eigenschaften
Mobilfunk
3G, 4G
Bluetooth
v5.0
Status LEDs / Schalter
Schalter
On/Off, Lautstärketasten
Schnittstellen
Schnittstellen
1xUSB, MicroSD card slot, 2xMicro-SIM card slot
Stromversorgung
Eingangsspannung DC
5..9 V
Netzteil
Art der Spannungsversorgung
External power adapter AC/DC
Akku
Akku 1 Technologie
Li-ion
Akku 1 Kapazität
6200 mA*h
Software
Betriebssystem installiert
Android
Maße und Gewicht
Breite
220 mm
Höhe
147 mm
Tiefe
20.9 mm
Betriebsbedingungen
Maximale Betriebstemperatur
-10..55 °C
Luftfeuchtigkeit
5-95%
Maße
Bruttogewicht
0.85 kg
Nettogewicht
0.65 kg

Dokumente
GT78-VN-LTE-2D-Datasheet.pdf
