GOT-5840T-834-DC

GOT-5840T-834-DC

AXIOMTEK
ART. NR.:: 06775000

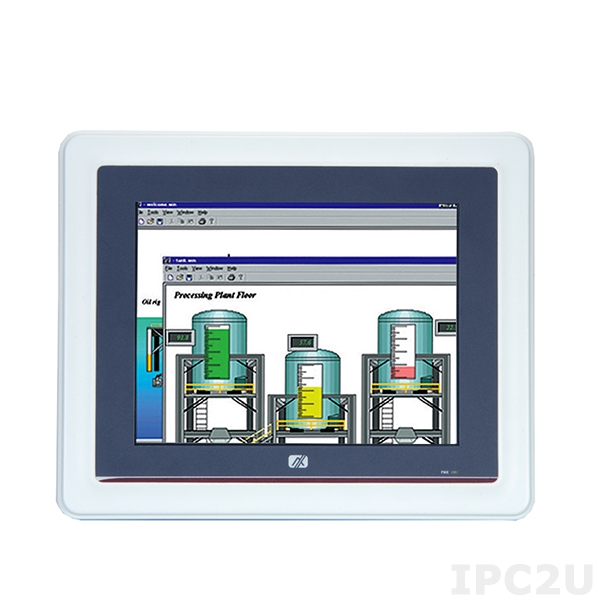

8.4" SVGA Intel Celeron J1900 2.42GHz fanless touch panel computer with DDR3L, 2xGB LAN, 2xRS-232/422/485, 2xUSB 3.0, Audio, CFast/mSATA, 1x PCI Express Mini, WLAN antenna, IP65 front, DC-in
Preis auf Anfrage
Verfügbar
Verfügbar

Aufbau
Gehäuse
Aluminiumgehäuse
Einbaumöglichkeit
Wall, Panel, Wall VESA 100, Wall VESA 75
Schutzlevel Frontseite (Panel)
IP65
Typ
Lüfterlos
Display
Bildschirmtyp
LCD TFT
Diagonale
8.4 "
Maximale Auflösung
800x600 Dots
Helligkeit
350 Cd/m2
Touch Screen
Touch Screen Art
resistiv
CPU
CPU Generation/Familie
Bay Trail
Installierter Prozessor
Intel Celeron J1900
Socket
CPU onboard
Maximale CPU-Frequenz
2.42 GHz
Chipsatz
Chipsatz
Intel Bay Trail-I SoC
Speicher
Formfaktor
DDR3L
Socket Typ
1xSODIMM
Maximum Speicher
8 GB
Bauweise
herausnehmbar
Grafik
Grafikcontroller
integriert im Prozessor
Ethernet
Controller Typ
Intel i210-IT
Ethernet gesamt
2
10/100/1000 Mbit/s
2
Schnittstellen Seriell / Parallel
COM gesamt
2
RS-232/422/485
2
USB gesamt
2
USB v3.x
2
Schnittstelle
CompactFlash Speicherkarten-Slots
1
Steckplätze
Gesamtanzahl
2
Mini-PCIe/Mini Card
2
SIM-Karten Steckplätze
1
Zusätzliche Funktionen
Watchdog-Timer-Typ
Software
Status LEDs / Schalter
LED
Power LED
Schalter
On/Off
Schnittstellen
Schnittstellen
2xDB9, 2xRJ45, 2xUSB, Line Out, DC input (terminal block)
Stromversorgung
Eingangsspannung DC
9..36 V
Stromverbrauch
25 W
Netzteil
Unterstützte Stromversorgung
External power adapter AC/DC
Software
Betriebssystemkompatibilität
Windows 7, Windows Embedded Standard 7, Windows Embedded Standard 8, Windows 8.1
Maße und Gewicht
Breite
250.7 mm
Höhe
204.7 mm
Tiefe
45.8 mm
Betriebsbedingungen
Maximale Betriebstemperatur
0..45 °C
Vibration
2G, 5~500Hz, random for CompactFlash
Normen und Zertifikate
Zertifizierungen
CE
Maße
Bruttogewicht
2.39 kg
Nettogewicht
2.39 kg

Dokumente
Datasheet_GOT_5840T_834__25965872.pdf
