GOT-318WL-845-PCT-DC

GOT-318WL-845-PCT-DC

AXIOMTEK
ART. NR.:: 08032000

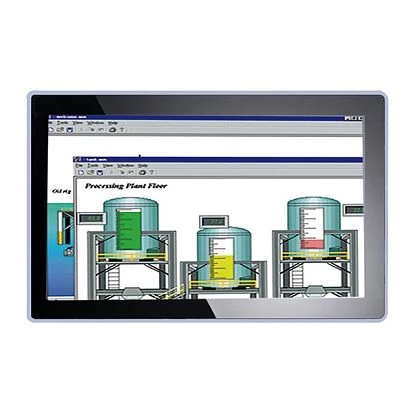

18.5" WXGA TFT Fanless Touch Panel Computer, Intel Pentium N3710 1.6GHz, 1x 204-pin DDR3L 1333/1600 MHz, PCAP, 1x 2.5" SATA HDD, 1xmSATA, 1xCFast, 2xGbE LAN, 2xCOM, 4xUSB, 2xPCIe Mini, Audio, 24VDC-in
Preis auf Anfrage
Verfügbar
Verfügbar

Aufbau
Gehäuse
Aluminiumgehäuse
Einbaumöglichkeit
Wall, Panel, Einbau
Schutzlevel Frontseite (Panel)
IP65
Typ
Lüfterlos
Display
Bildschirmtyp
LCD TFT
Diagonale
18.5 "
Maximale Auflösung
1366x768 Dots
Seitenverhältnis
16:9
Helligkeit
250 Cd/m2
Touch Screen
Touch Screen Art
kapazitiv
CPU
CPU Generation/Familie
Braswell
Installierter Prozessor
Intel Pentium N3710
Socket
CPU onboard
Maximale CPU-Frequenz
2.56 GHz
Chipsatz
Chipsatz
Intel Braswell SoC
Speicher
Formfaktor
DDR3L
Socket Typ
1xSODIMM
Maximum Speicher
8 GB
Bauweise
herausnehmbar
Grafik
Grafikcontroller
integriert im Prozessor
Ethernet
Controller Typ
Intel i217LM 10/100/1000 Mbps, Intel i210AT 10/100/1000 Mbps
Ethernet gesamt
2
10/100/1000 Mbit/s
2
Schnittstellen Seriell / Parallel
COM gesamt
2
RS-232
1
RS-232/422/485
1
USB gesamt
4
USB 2.0
2
USB v3.x
2
Audio
Audio Controller
Intel HD Audio
Schnittstelle
mSATA
1
Laufwerksschächte
Gesamtanzahl
1
2.5" intern
1
Steckplätze
Gesamtanzahl
2
Mini-PCIe/Mini Card
2
SIM-Karten Steckplätze
1
Zusätzliche Funktionen
Watchdog-Timer-Typ
Software
Status LEDs / Schalter
Schalter
Tastenfeld
Schnittstellen
Schnittstellen
2xDB9, HDMI, 2xRJ45 Ethernet, 4xUSB, Line Out, DC Input
Stromversorgung
Eingangsspannung DC
24..24 V
Stromverbrauch
48 W
Software
Betriebssystemkompatibilität
Windows 10 IoT Enterprise, Windows 10
Maße und Gewicht
Breite
460.8 mm
Höhe
285 mm
Tiefe
58.5 mm
Betriebsbedingungen
Maximale Betriebstemperatur
0..50 °C
Vibration
1G, 10 ~ 500 Hz
Normen und Zertifikate
Zertifizierungen
CE
Maße
Bruttogewicht
8.2 kg
Nettogewicht
5.8 kg

Dokumente
Datasheet_GOT_318WL_845__33242028.pdf
