Gladius-G0710-M

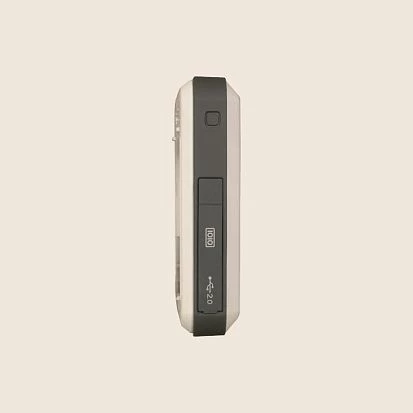

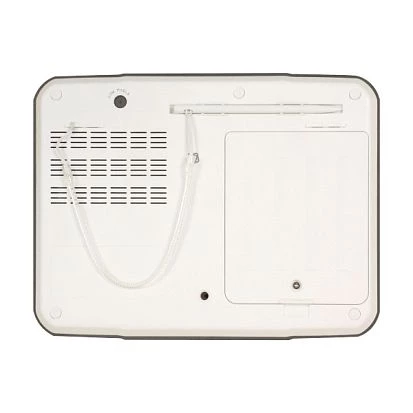

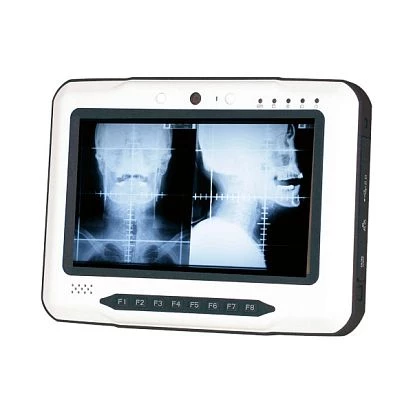

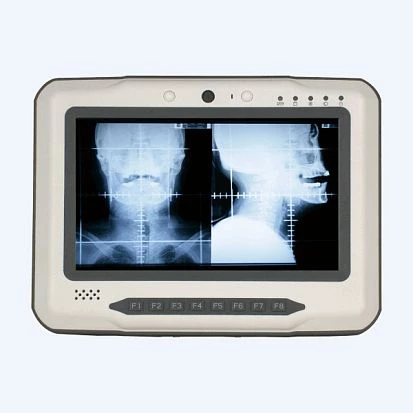

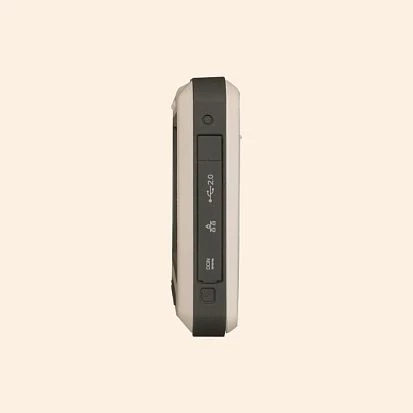

Gladius-G0710-M

Arbor
ART. NR.:: 57851900
7" Medical Tablet PC, 1024x600, 300cd/m2, Resistive Touch, Intel Atom Z510 1.1GHz CPU, Intel GMA 500, 1GB DDR2 RAM, 4GB CF, 32GB SSD, 1xGbE LAN, 2xUSB 2.0, 1xRS232, 1.3MP Front, 2MP Rear, WiFi/BT/3G, SIM, RFID, Audio/Mic, 2600mAH, 9-36VDC-In, 0..45C
Preis auf Anfrage
Verfügbar
Verfügbar

System configuration
Preis exkl. MwSt.
Preis auf Anfrage
Preis auf Anfrage
Preis auf Anfrage

Aufbau
Gehäuse
Kunststoffgehäuse, Rugged Gehäuse
Schutzlevel Gehäuse
IP54
Typ
Lüfterlos
Display
Bildschirmtyp
LCD TFT
Diagonale
7 "
Maximale Auflösung
1024x600 Dots
Seitenverhältnis
16:9
Helligkeit
300 Cd/m2
Kontrastverhältnis
400~1
Touch Screen
Touch Screen Art
resistiv
CPU
Installierter Prozessor
Intel Atom Z510
Socket
CPU onboard
Maximale CPU-Frequenz
1.1 GHz
Chipsatz
Chipsatz
Intel US15W
Speicher
Formfaktor
DDR2
Socket Typ
Verlötet
ECC
No
Standard Onboard Speicher
1 GB
Bauweise
Onboard fixiert
Grafik
Grafikcontroller
Intel GMA 500
Ethernet
Controller Typ
Realtek RTL8111 10/100/1000 Mbps
Ethernet gesamt
1
10/100/1000 Mbit/s
1
Schnittstellen Seriell / Parallel
COM gesamt
1
RS-232
1
USB gesamt
2
USB 2.0
2
Schnittstelle
CFast Speicherkarten-Slots
1
Laufwerksschächte
Gesamtanzahl
1
Einbauschacht
Massenspeicher Typ
SSD
Massenspeicher-Formfaktor
2.5"
Massenspeicher-Schnittstelle
IDE
Massenspeicher 1. Kapazität
32 GB
Massenspeicher 2. Kapazität
4 GB
Steckplätze
SIM-Karten Steckplätze
Yes, 1
Zusätzliche Funktionen
Frontkamera
1.3 MP
Rückseitige Kamera
2 MP
RFID Lesegerät
Ja
Antennen Eigenschaften
Mobilfunk
3G (Optional)
Bluetooth
v2.1 + EDR
Status LEDs / Schalter
LED
1xHDD LED, Batterie Status, Power LED, Bluetooth LED, RFID LED
Schalter
On/Off, 1xReset, Kontrolltasten
Schnittstellen
Schnittstellen
DB9, RJ45 Ethernet, 2xUSB
Docking Station
Ja
Netzteil
Art der Spannungsversorgung
External power adapter AC/DC
Ausgangsleistung
60 W
Akku
Akku 1 Technologie
Li-ion
Akku 1 Kapazität
2600 mA*h
Laufzeitbatterie 1
4 h
Software
Betriebssystemkompatibilität
Windows 7, Ubuntu, Fedora
Maße und Gewicht
Breite
210 mm
Höhe
160 mm
Tiefe
36 mm
Betriebsbedingungen
Maximale Betriebstemperatur
0..45 °C
Luftfeuchtigkeit
5-95%
Vibration
1 Grms/ 5 ~ 500Hz/ random operation
Schock
10G peak acceleration (11ms duration)
Normen und Zertifikate
Zertifizierungen
CE, FCC Class B
Maße
Bruttogewicht
1.8 kg
Nettogewicht
1.46 kg

Dokumente
G0710-User-manual.pdf G0710-Datasheet.pdf
