G1052C

G1052C

Arbor
ART. NR.:: 06650400

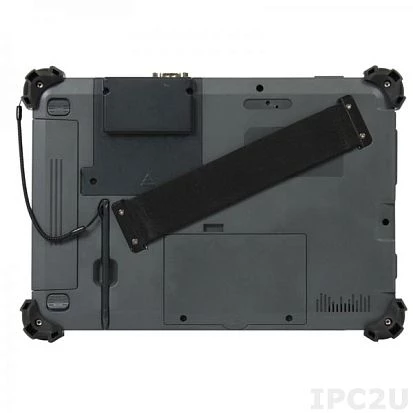

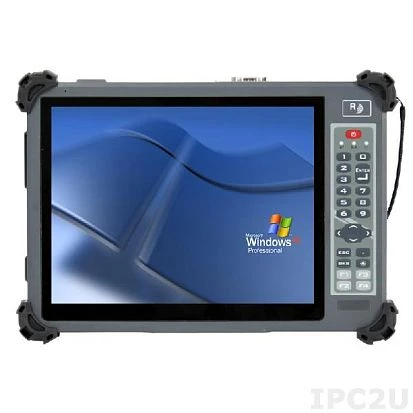

10.4" Gladius G1052C Rugged Tablet PC, 1024x768, 340cd/m, PCAP Touch, Intel Celeron N2930 1.83GHz CPU, 2GB DDR3L RAM, 32GB mSATA SSD, Mini-HDMI, 1xMicroSD/HC/XC, 1xUSB 3.0, 1xMicro-USB 2.0, 5MP Rear, WiFi/BT, 2500mAh Batt., 19VDC-in w/ Power Adapter
Preis auf Anfrage
Verfügbar
Verfügbar

Aufbau
Gehäuse
ABS-Kunstoffgehäuse
Schutzlevel Gehäuse
IP54
Typ
Lüfterlos
Display
Bildschirmtyp
LCD AFFS+TFT
Diagonale
10.4 "
Maximale Auflösung
1024x768 Dots
Helligkeit
340 Cd/m2
Kontrastverhältnis
600~1
Touch Screen
Touch Screen Art
kapazitiv
CPU
CPU Generation/Familie
Bay Trail
Installierter Prozessor
Intel Celeron N2930
Maximale CPU-Frequenz
2.16 GHz
Chipsatz
Chipsatz
Intel Bay Trail-I SoC
Speicher
Formfaktor
DDR3L
Socket Typ
1xSODIMM
ECC
No
Standard Onboard Speicher
2 GB
Maximum Speicher
8 GB
Bauweise
herausnehmbar
Grafik
Grafikcontroller
integriert im Prozessor
Wi-Fi
WLAN IEEE-Norm
802.11a/b/g/n
Schnittstellen Seriell / Parallel
USB gesamt
1
USB v3.x
1
Schnittstelle
mSATA
1
SD Speicherkarten-Slots
1
MicroSDHC Speicherkarten-Slots
1
Einbauschacht
Massenspeicher Typ
SSD
Massenspeicher-Formfaktor
mSATA
Massenspeicher 1. Kapazität
32 GB
Zusätzliche Funktionen
Rückseitige Kamera
5 MP
GPS
GPS
RFID Lesegerät
Optional
Barcode Scanner
Optional
Smart Card Lesegerät
Optional
Antennen Eigenschaften
Bluetooth
v4.0
Status LEDs / Schalter
LED
Batterie Status, Power LED, WLAN LED, Bluetooth LED
Schalter
On/Off, Kontrolltasten
Schnittstellen
Schnittstellen
1xUSB, MicroSD card slot
Docking Station
Ja
Stromversorgung
Eingangsspannung DC
19..19 V
Netzteil
Art der Spannungsversorgung
External power adapter AC/DC
Eingangsspannung AC
100..240 V
Akku
Akku 1 Technologie
Li-ion
Akku 1 Kapazität
2500 mA*h
Laufzeitbatterie 1
8 h
Akku 1 Hotswap
Optional
Akku 2 Technologie
Li‑ion
Akku 2 Kapazität
1880 mA*h
Akku 2 Hotswap
No
Software
Betriebssystemkompatibilität
Windows Embedded Standard 7, Windows Embedded Standard 8, Ubuntu, Windows 10 IoT Enterprise, Windows Embedded 8.1 Industry
Maße und Gewicht
Breite
294.1 mm
Höhe
204.9 mm
Tiefe
26.2 mm
Betriebsbedingungen
Maximale Betriebstemperatur
-20..45 °C
Luftfeuchtigkeit
10-95%
Vibration
20 to 1000 Hz @ 1 grms per MIL-STD 810G (operating); 20 to 1000 Hz @ 3 grms per MIL-STD 810G (nonoperating)
Schock
11 ms @ 20G per MIL-STD 810G for unit only (operating); 11 ms @ 40G per MIL-STD 810G for unit only (nonoperating)
Temperatur (Lagerung)
-20~+60
Normen und Zertifikate
Zertifizierungen
CE, FCC
EMS
EN 55022 Class B
MIL-STD-810
MIL-STD-810G Test Method 516.4 Drop 120 cm
Maße
Bruttogewicht
1.2 kg
Nettogewicht
0.9 kg

Dokumente
Gladius-G1052C-Datasheet.pdf G1052-Series-User-Manual.pdf
