eBOX-3350DX3

eBOX-3350DX3

ICOP
ART. NR.:: 07874100

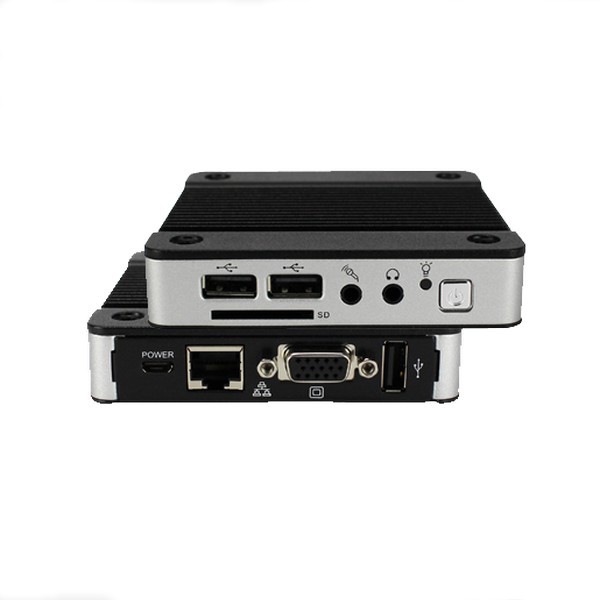

Compact Embedded System with Vortex86DX3 1GHz CPU, 1GB DDR3 RAM, VGA, 1xLAN, 3xUSB, Audio In/Out, SD/SDHC Slot, +5V DC-in, External Power Adapter
Preis auf Anfrage
Verfügbar
Verfügbar

Aufbau
Gehäuse
Kunststoffgehäuse
Einbaumöglichkeit
Wall, Desktop, Einbau, Wall VESA 75
Typ
Lüfterlos
CPU
Installierter Prozessor
Vortex86DX3
Socket
CPU onboard
Maximale CPU-Frequenz
1 GHz
Speicher
Formfaktor
DDR3
Standard Onboard Speicher
1 GB
Bauweise
Onboard fixiert
Grafik
Grafikcontroller
integriert im Prozessor
Ethernet
10/100 Mbit/s
1
Schnittstellen Seriell / Parallel
USB gesamt
3
USB 2.0
3
Schnittstelle
SD Speicherkarten-Slots
1
Schnittstellen
Schnittstellen
DB15 VGA, RJ45 Ethernet, 3xUSB, Mic In, Line Out, DC Input, SD card slot
Stromversorgung
Eingangsspannung DC
5 V
Maße und Gewicht
Breite
95 mm
Höhe
95 mm
Tiefe
20 mm
Betriebsbedingungen
Maximale Betriebstemperatur
5..50 °C
Normen und Zertifikate
Zertifizierungen
CE, FCC, VCCI
Maße
Bruttogewicht
0.5 kg
Nettogewicht
0.28 kg

Dokumente
Datasheet_EBOX_3350DX3__32651808.pdf
