DIO-96

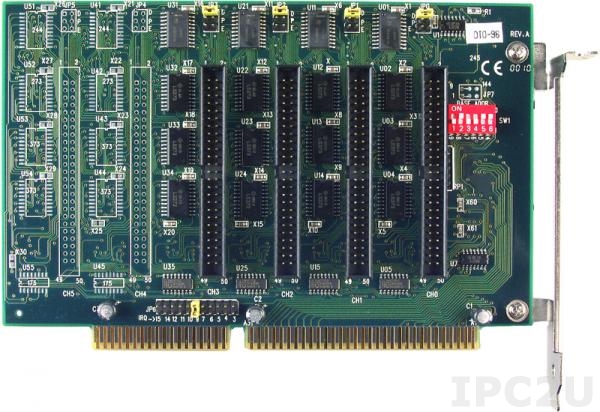

ISA 96 Bit OPTO-22 Compatible Digital I/O Board

Preis auf Anfrage * - Mit der gewählten Konfiguration ()
Stk.
Bestellen
Zu den Favoriten hinzufügen Aus den Favoriten entfernen
Auf die Vergleichs Vergleichen
Hersteller:
ICP DAS
Systembus:
ISA
Gesamtanzahl:
96
Gesamtanzahl:
96
Gesamtanzahl:
96
Spezifikationen
Hersteller
Name:
ICP DAS
Systemarchitektur
Systembus:
ISA
Digital Eingang / Ausgang
Gesamtanzahl:
96
Eingang:
96
Ausgang:
96
Digital Eingang
Gesamtanzahl:
96
digitale "1" Wet Contact:
2 ... 5 V
digitale "0" Wet Contact:
0 ... 0.4 V
Digital Ausgang
Gesamtanzahl:
96
Ausgangsspannung:
0 ... 5 V
Max. Ausgangsstrom:
0.8 mA
Schnittstellen
Intern:
4x50-pin box header
Software
Betriebssystemkompatibilität:
Linux kernel 2.6, Windows XP, Windows 7, Windows Vista
Entwicklung Software:
VC, VB, Delphi, BCB, LabVIEW
Betriebsbedingungen
Temperatur:
0 ... 60 °C
Feuchtigkeit:
5 ... 85 % (non-condensing)
Lagerbedingungen
Temperaturbereich:
-20 ... 70 °C
Maße und Gewicht
Breite:
22 mm
Höhe:
120 mm
Tiefe:
182 mm
Optionen

Konfiguration

{{option[key].COUNT}}
{{option[key].name}} {{option[key].name}}
Preis auf Anfrage ()
Daughter Boards Einzelpreis Gesamtpreis
nicht installiert
Isolated 24 Channels Photo MOS Relay Daughter Board, Opto-22 Compatible
Isolated 24 Channels Open Collector Daughter Board, Opto-22 Compatible
24 Channels Form C Relay (12V) Daughter Board, Opto-22 Compatible, DB37 Connector, DIN-Rail Mounting
24 Channels Power Relay (12V) Daughter Board, Opto-22 Compatible, DB37 Connector, DIN-Rail Mounting
24 Channels Power Relay (12V) Daughter Board, Opto-22 Compatible, DB37 Connector
24 Channels Form C Relay (24V) Daughter Board, Opto-22 Compatible
24 Channels AC/DC Isolated Digital Daughter Board, Opto-22 Compatible
24 Channels Form C Relay (12V) Daughter Board, Opto-22 Compatible, DB37 Connector
Isolated 24 Channels Open Collector Daughter Board, Opto-22 Compatible
24 Channels Power Relay (24V) Daughter Board, Opto-22 Compatible
24 Channels Solid State Relay Daughter Board, Opto-22 Compatible
24 Channels Form C Relay (12V) Daughter Board, Opto-22 Compatible
24 Channels Form C Relay (24V) Daughter Board, Opto-22 Compatible, DB37 Connector, DIN-Rail Mounting
24 Channels Power Relay (24V) Daughter Board, Opto-22 Compatible, DB37 Connector
24 Channels Solid State Relay Daughter Board, Opto-22 Compatible, DIN-Rail Mounting
24 Channels Power Relay (12V) Daughter Board, Opto-22 Compatible
Isolated 24 Channels Photo MOS Relay Daughter Board, Opto-22 Compatible, DIN-Rail Mounting
24 Channels Form C Relay (24V) Daughter Board, Opto-22 Compatible, DB37 Connector
24 Channels Power Relay (24V) Daughter Board, Opto-22 Compatible, DB37 Connector, DIN-Rail Mounting
24 Channels AC/DC Isolated Digital Daughter Board, Opto-22 Compatible, DB37 Connector
24 Channels AC/DC Isolated Digital Daughter Board, Opto-22 Compatible, DB37 Connector, DIN-Rail Mounting
24 Channels Solid State Relay Daughter Board, Opto-22 Compatible
Isolated 24 Channels Open Collector Daughter Board, Opto-22 Compatible, DIN-Rail Mounting
Isolated 24 Channels Photo MOS Relay Daughter Board, Opto-22 Compatible
Isolated 24 Channels Photo MOS Relay Daughter Board, Opto-22 Compatible, DIN-Rail Mounting
Isolated 24 Channels Open Collector Daughter Board, Opto-22 Compatible, DIN-Rail Mounting
24 Channels Solid State Relay Daughter Board, Opto-22 Compatible, DIN-Rail Mounting
Isolated 16 Channels AC/DC & 8 Channels Form C Relay Digital Daughter Board
Isolated 16 Channels AC/DC & 8 Channels Form C Relay Digital Daughter Board, DIN-Rail Mounting
IDC-50 Connector Termination Board, DIN-Rail Mounting, Include CA-5015(50-pin Flat Cable 1.5m), up to 30V
IDC-50 Connector Termination Board, up to 30V
Dokumentation

Größe

Gewicht

Bruttogewicht: 0.35 kg
