APL-PITX-N3350

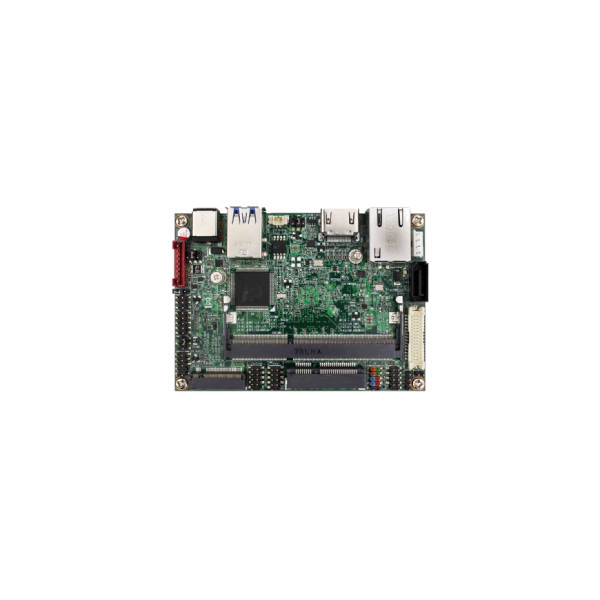

APL-PITX-N3350

ICOP
ART. NR.:: 57467700
3.5" CPU Intel Apollo Lake N3350, DDR3L up to 8GB, LVDS, HDMI, 1xGbE LAN, 2xCOM, 2xUSB 3.0, 2xUSB 2.0, 8bit GPIO, mPCIe, SATA, M.2 (M-key 2242), Audio, 0..60C, 12VDC
Preis auf Anfrage
Verfügbar
Verfügbar

CPU
CPU Generation/Familie
Apollo Lake
Installierter Prozessor
Intel Celeron N3350
Socket
FCBGA1296
Maximale CPU-Frequenz
2.4 GHz
Speicher
Formfaktor
DDR3L
Socket Typ
1xSODIMM
Standard Onboard Speicher
8 GB
Maximum Speicher
8 GB
Grafik
Grafikcontroller
Intel HD Graphics 500
Schnitstellen
LVDS, HDMI
Ethernet
Controller Typ
Realtek RTL8111H
10/100/1000 Mbit/s
1
Schnittstellen Seriell / Parallel
COM gesamt
2
RS-232
1
RS-232/422/485
1
USB 2.0
2
USB v3.x
2
Audio
Audio Controller
Realtek ALC662
Steckplätze
SIM-Karten Steckplätze
Yes, 1
M.2
1
Mini-PCIe/Mini Card
1
Schnittstellen
Intern
4-pin SMBus, 30-pin LVDS, 10-pin GPIO
Schnittstellen
2xDB9, HDMI, RJ45, 4xUSB, Mic In, Line In, Line Out, SIM Card Slot, DB15 GPIO
Software
Betriebssystemkompatibilität
Linux OS, Windows 10
Maße und Gewicht
Breite
100 mm
Länge
72 mm
Betriebsbedingungen
Maximale Betriebstemperatur
0..60 °C
Maße
Bruttogewicht
0.5 kg
CPU
CPU Generation/Familie
Apollo Lake
Installierter Prozessor
