AFL3-12A-BT-J1/R/4G

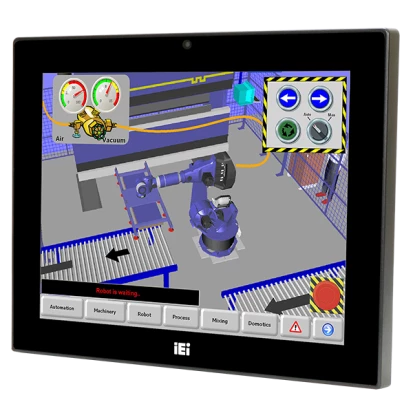

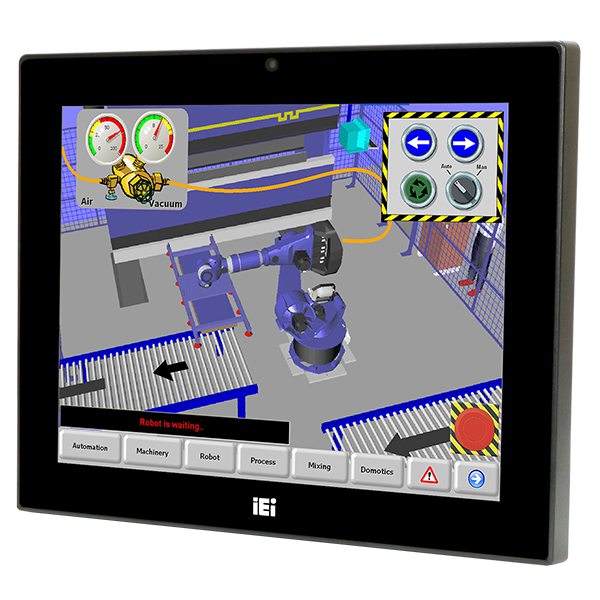

AFL3-12A-BT-J1/R/4G

IEI
ART. NR.:: 57278700
12.1" Fanless Panel PC, IP64 Front, 1024x768, 500 cd/m, Anti-Glare, Resistive Touch, Intel Celeron J1900 2.0GHz CPU, 4GB DDR3L RAM, 2xGbE LAN, 2xUSB 3.2, 2xUSB 2.0, 2xCOM, WiFi5, 2.5" Drive Bay, MiniPCIe (mSATA), Audio, 9-30VDC-in, R17
Preis auf Anfrage
Verfügbar
Verfügbar

Aufbau
Gehäuse
Metallgehäuse
Einbaumöglichkeit
Wall, Panel, Wall VESA 100, Wall VESA 75
Schutzlevel Frontseite (Panel)
IP64
Typ
Lüfterlos
Display
Bildschirmtyp
LCD TFT
Diagonale
12.1 "
Maximale Auflösung
1024x768 Dots
Seitenverhältnis
4:3
Helligkeit
500 Cd/m2
Kontrastverhältnis
700~1
Touch Screen
Touch Screen Art
resistiv
CPU
CPU Generation/Familie
Bay Trail
Installierter Prozessor
Intel Celeron J1900
Socket
FCBGA1170
Maximale CPU-Frequenz
2.42 GHz
Chipsatz
Chipsatz
Intel SoC
Speicher
Formfaktor
DDR3L
Socket Typ
1xSODIMM
ECC
No
Standard Onboard Speicher
4 GB
Maximum Speicher
8 GB
Bauweise
herausnehmbar
Grafik
Grafikcontroller
integriert im Prozessor
Ethernet
Controller Typ
Realtek RTL8111H
Ethernet gesamt
2
10/100/1000 Mbit/s
2
Wi-Fi
WLAN IEEE-Norm
802.11a/b/g/n/ac
Schnittstellen Seriell / Parallel
COM gesamt
2
RS-232
1
RS-232/422/485
1
USB gesamt
4
USB 2.0
2
USB v3.x
2
Audio
Audio Controller
Realtek ALC888S
Schnittstelle
SATA 2
1
mSATA
1
Laufwerksschächte
Gesamtanzahl
1
2.5" intern
1
Steckplätze
Gesamtanzahl
2
Mini-PCIe/Mini Card
2
Status LEDs / Schalter
Schalter
On/Off, 1xReset
Schnittstellen
Schnittstellen
DB9, 2xRJ45 Ethernet, 4xUSB, Line Out, DC Input, RJ45 (COM)
Stromversorgung
Eingangsspannung DC
9..30 V
Netzteil
Unterstützte Stromversorgung
External power adapter AC/DC
Software
Betriebssystemkompatibilität
Windows 10 IoT Enterprise, Windows 10
Maße und Gewicht
Breite
304 mm
Höhe
243 mm
Tiefe
44 mm
Betriebsbedingungen
Maximale Betriebstemperatur
-20..50 °C
Luftfeuchtigkeit
10-95%
Normen und Zertifikate
Zertifizierungen
CE/FCC
Maße
Bruttogewicht
3.95 kg
Nettogewicht
1.92 kg

Dokumente
AFL3-12A-BT-J1-R-4G-1-Datasheet.pdf
