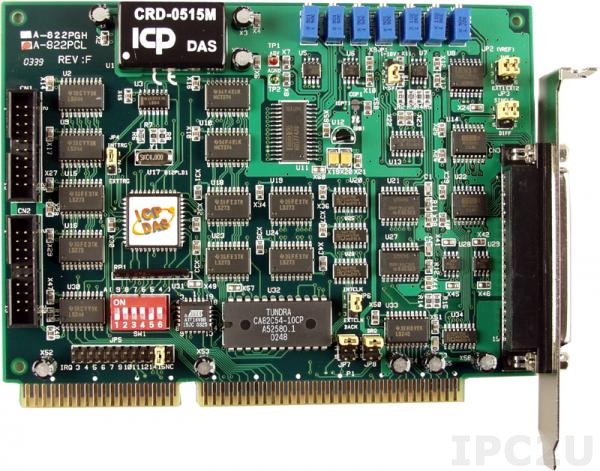

A-822PGL

Multifunction Adapter ISA, 16SE/8D ADC, 2 DAC, 16DI, 16DO, Timer

Nicht verfügbar
Hersteller:
ICP DAS
Systembus:
ISA
Anzahl:
16
Anzahl:
2
Gesamtanzahl:
16
Gesamtanzahl:
16
Spezifikationen
Hersteller
Name:
ICP DAS
Systemarchitektur
Systembus:
ISA
Analog Eingang
Anzahl:
16
Differential:
8
Single-Ended:
16
Abtastfrequenz:
125 kHz
Abtastrate:
12 Bit
Genauigkeit:
0.01 %
Analog Ausgang
Anzahl:
2
Spannungsbereich:
0...5 V, 0...10 V, +/-10 V
Abtastrate:
12 Bit
Genauigkeit:
0.01 %
Digital Eingang
Gesamtanzahl:
16
Typ:
Wet contact
digitale "1" Wet Contact:
2 ... 5 V
digitale "0" Wet Contact:
0 ... 0.8 V
Digital Ausgang
Gesamtanzahl:
16
Sink/Source:
Stromziehend (Sink), stromliefernd (Source)
Ausgangsspannung:
0 ... 5 V
Max. Ausgangsstrom:
0.8 mA
Zähler
Anzahl:
3
Spannungspegel High "1" ohne Isolierung:
2 ... 5 V
Spannungspegel Low "0" ohne Isolierung:
0 ... 0.8 V
Genauigkeit:
16 Bit
Max. Frequenz:
10 MHz
Schnittstellen
Intern:
2x20-pin box header
Schnittstellen:
DB37 Female
Software
Betriebssystemkompatibilität:
Linux kernel 2.6, Windows XP, Windows 7, Windows Vista
Entwicklung Software:
VC, VB, Delphi, BCB, LabVIEW
Betriebsbedingungen
Temperatur:
0 ... 60 °C
Feuchtigkeit:
5 ... 85 % (non-condensing)
Lagerbedingungen
Temperaturbereich:
-20 ... 70 °C
Maße und Gewicht
Breite:
22 mm
Höhe:
106 mm
Tiefe:
163 mm
Optionen

Konfiguration

{{option[key].COUNT}}
{{option[key].name}} {{option[key].name}}
Preis auf Anfrage ()
Daughter Boards Einzelpreis Gesamtpreis
nicht installiert
16 Channels Form C Relay Daughter Board, Max. Switching Voltage 120VAC/60VDC, Max. Switching Current 1A
16 Channels AC/DC Isolated Digital Daughter Board, Maximum input voltage 24 VDC/24 VAC, Source Current 4 mA/channel minimum@5V inputs, 20 mA/channel minimum@24V inputs
Screw Terminal Board, 2xIDC-20 Connectors
Screw Terminal Board, 2xIDC-20, DB-37 Connectors, Cable CA-3720, 1 m
Screw Terminal Board with CJC Sensor, DB-37 Connector
Screw Terminal Board with CJC Sensor, DB-37 Connector, DIN-Rail Mounting
Screw Terminal Board with CJC Sensor, DB-37 Connector
Screw Terminal Board with CJC Sensor, DB-37 Connector, DIN-Rail Mounting, up to 50V
DB-37 Male Direct Connection Screw Terminal Board, up to 50V
2x20-pin Connector Termination Board, DIN-Rail Mounting
2x20-pin Connector Termination Board
DB-37 Connector Termination Board, DIN-Rail Mounting
DB-37 Connector Termination Board, 1A/50V max
Zubehör Einzelpreis Gesamtpreis
nicht installiert
2xIDC-20 ISA Extender
Vergleichbare Produkte
Universal PCI, 250 kS/s, 32/16-ch 12-bit AI, 2-ch 16-bit AO, 32-ch Programmable DIO, Cable Socket CA-4002
Preis auf Anfrage

Brauchen Sie Hilfe?

Chatten Sie mit einem unseren Mitarbeiter oder senden Sie uns Ihre Anfrage per E-Mail: sales@ipc2u.de

Vergleichbares Produkt anfragen

Größe

Gewicht

Bruttogewicht: 0.49 kg
Nettogewicht: 0.16 kg
