QBiP-8565A

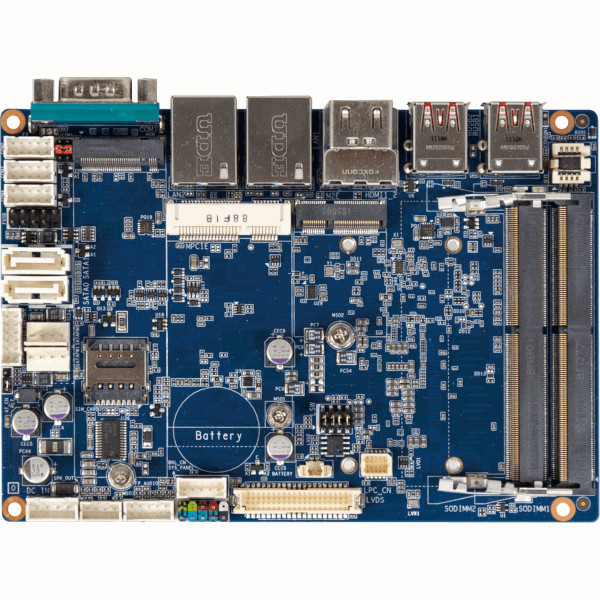

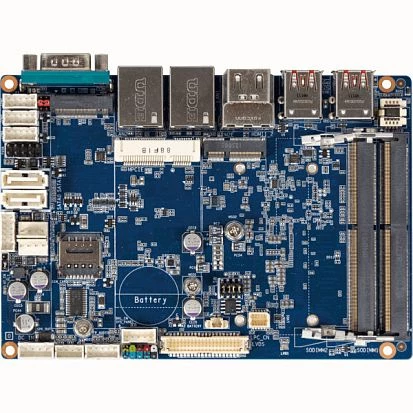

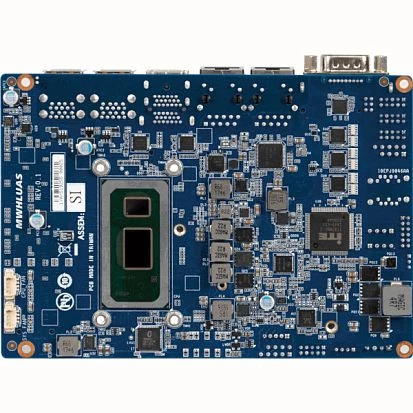

QBiP-8565A

GIGAIPC
ART. NR.:: 57037800
3.5" SBC Board, Intel Core i7-8565U 1.8-4.6GHz CPU, 2x DDR4 SO-DIMM, 2xHDMI 1.4, 2xGbE, 4xUSB 3.1, 2xUSB 2.0, 3xRS-232, 1x RS-232/422/485, SIM Slot, LVDS, 2xSATA, M.2 M Key, M.2 E-Key, Mini-PCIe, 9-36V DC/In
Preis auf Anfrage
Verfügbar
Verfügbar

Systemarchitektur
Formfaktor
3.5"
CPU
CPU Generation/Familie
Whiskey Lake
Installierter Prozessor
Intel Core i7
Maximale CPU-Frequenz
1.8 GHz
Menge der CPUs
1
Speicher
Formfaktor
DDR4
Socket Typ
2xSODIMM
Maximum Speicher
32 GB
Grafik
Grafikcontroller
Intel HD Graphics 620
Ethernet
Controller Typ
Intel i211-AT 10/100/1000 Mbps, Intel i219-V 10/100/1000 Mbps
Ethernet gesamt
2
10/100/1000 Mbit/s
2
Schnittstellen Seriell / Parallel
COM gesamt
4
RS-232
3
RS-232/422/485
3
USB gesamt
4
USB v3.x
4
Steckplätze
Gesamtanzahl
3
M.2
2
Mini-PCIe/Mini Card
1
Schnittstellen
Intern
2xUSB 2.0, 4-pin Power, GPIO, 2xSATA
Schnittstellen
DB9, 2xHDMI, 2xRJ45, 4xUSB
Maße und Gewicht
Breite
146 mm
Länge
101.7 mm
Betriebsbedingungen
Maximale Betriebstemperatur
0..60 °C
Maße
Bruttogewicht
0.53 kg
Nettogewicht
0.15 kg
