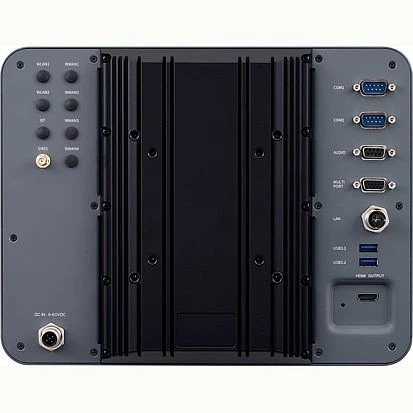

VMC-3030-AC0

VMC-3030-AC0

ART. NR.:: 57877800

10.1" Rugged Vehicle Mount PC, IP65 Front, 1280x800, PCAP Touch, 1000cd/m2, Intel Atom x7433RE CPU, 8GB DDR5 RAM, HDMI, 1x2.5GbE M12 LAN, 1xUSB 2.0, 2xUSB 3.2, 2xCOM, GPIO/CAN, GPS, 1xMiniPCIe, 1xM.2 Key-M (SATA), 1xM.2 Key-E, 1xM.2 Key-B, 9-60VDC-in

Preis auf Anfrage

Aufbau

Gehäuse

Aluminiumgehäuse

Einbaumöglichkeit

Wall, Panel, Wall VESA 100, Wall VESA 75

Schutzlevel Frontseite (Panel)

IP65

Typ

Lüfterlos

Display

Bildschirmtyp

LCD TFT

Diagonale

10.1 "

Maximale Auflösung

1280x800 Dots

Helligkeit

1000 Cd/m2

Kontrastverhältnis

800~1

Touch Screen

Touch Screen Art

kapazitiv

CPU

Installierter Prozessor

Intel Atom x7213RE

Socket

FCBGA1264

Maximale CPU-Frequenz

3.4 GHz

Chipsatz

Chipsatz

Intel Atom SoC

Speicher

Formfaktor

DDR5

Socket Typ

1xSODIMM

ECC

No

Standard Onboard Speicher

8 GB

Maximum Speicher

16 GB

Bauweise

herausnehmbar

Grafik

Grafikcontroller

integriert im Prozessor

Ethernet

Ethernet gesamt

1

2,5 Gbit/s

1

Schnittstellen Seriell / Parallel

COM gesamt

2

RS-232/422/485

2

USB gesamt

3

USB 2.0

1

USB v3.x

2

Digital Eingang / Ausgang

GPIO

2xDigital In / 2xDigital Out

Industrie Protokolle

CAN Port

1

Schnittstelle

M.2

1

mSATA

1

Steckplätze

Gesamtanzahl

4

M.2

3

M.2 Formfaktor

2280 M, 2230 E, 3052 B, 3042 B, 3050 B

Mini-PCIe/Mini Card

1

SIM-Karten Steckplätze

Yes, 2, Nano SIM

Antennen Eigenschaften

Mobilfunk

4G (Optional)

Zusätzliche Funktionen

GPS

GPS, GLONASS

Status LEDs / Schalter

LED

Power LED

Schalter

On/Off, Kontrolltasten, Funktionstasten, Lautstärketasten

Schnittstellen

Schnittstellen

3xDB9, HDMI, 3xUSB, DB15 GPIO, DB15 CAN Bus, M12 DC-in, M12 LAN

Stromversorgung

Eingangsspannung DC

9..60 V

Netzteil

Unterstützte Stromversorgung

External power adapter AC/DC

Software

Betriebssystemkompatibilität

Linux OS, Windows 10, Windows 11

Maße und Gewicht

Breite

294 mm

Höhe

227.5 mm

Tiefe

54 mm

Betriebsbedingungen

Maximale Betriebstemperatur

-30..60 °C

Luftfeuchtigkeit

10-90%

Vibration

Operating: MIL-STD-810H, 514.8 Procedure 1, Category 4 - Storage: MIL-STD-810H, 514.8E Procedure 1, Category 24 - IEC 60068-2-6: Sinusoidal 5~500MHz 2G

Schock

Operating: MIL-STD-810H, Method 516.8, Procedure I, trucks and semi-trailers = 40g - Crash hazard: MIL-STD-810H, Method 516.8, Procedure V, ground equipment = 75g - IEC 60068-2-27 Operating: half sine, 20G 11ms Non-operating: half sine, 50G 11ms

Normen und Zertifikate

Zertifizierungen

CE, FCC Class B

Automotive

e13 Mark

Maße

Bruttogewicht

5.3 kg

Nettogewicht

4.5 kg

Dokumente

VMC-3030-Datasheet.pdf
