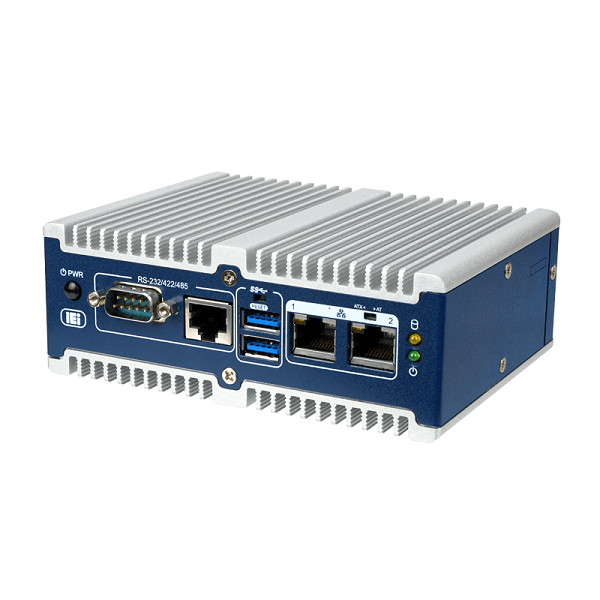

The ITG-100AI is a fanless embedded system, which has a very small Palm-sized design (dimensions (W x D x H) - 137 x 102.8 x 49.4 mm), which is a great advantage in today`s industrial environment, when the ability to fit into limited space – is one of the important factors.
The ITG-100AI is equipped with high-performance CPU Intel®Atom™ x5-E3930 1.3GHz (up to 1.8 GHz), pre-installed Mustang-MPCIE-MX2 accelerator card and two Intel Myriad X VPU. The Movidius Myriad X provides the following features - supports native FP16, rapidly port and deploy of neural networks in TensorFlow and Caffe formats, and acceleration for common deep neural networks. It is a perfect solution for implementation in AI edge computing devices for reducing total power usage, providing longer duty time of the rechargeable edge computing equipment.
Ordering Information
Please contact our sales team
Email: sales@ipc2u.com
or directly
By phone: +49 511 807 259-0
Related products can be found at:
Computers with discrete GPU and AI
Ordering Information
Please contact our sales team email: sales@ipc2u.com or directly by phone: +49 511 807 259-22
Computers with discrete GPU and AI
QBiX-Plus-KBLA7100-A1
- Intel®Atom™ x5-E3930 1.3GHz (up to 1.8 GHz)
- 8GB DDR3L SO-DIMM RAM
- 2x USB 3.0, 2x RJ45 GbE, 2x RS232/422/485, VGA
- Pre-installed Mustang-MPCIE-MX2, 2 x Intel Myriad X VPU (1 TOPS)
- MIL-STD-810G 514.6C, IEC68-2-27, CE/FCC
Thanks to the energy-efficient CPU, accelerator card and VPU, the ITG-100AI is a good solution for applications that require low power consumption, such as transportation, retail or surveillance. Also, the system has 128GB SATADOM (pre-installed), Micro SD card and eMMC 5.0 for expanding memory capacity. Despite the very small size, the ITG-100AI has following I/O interfaces – 2x USB 3.0, 2x RJ45 GbE (Intel I211 controller), 2x RS232/422/485 and VGA port. The input power of the PC is 9-36V DC In.
The construction of the compact embedded system consists of extruded aluminum alloy and has from -20°C to +50°C operating temperature with airflow. There are IEC68-2-27 certification for shock (Half-sine wave shock 5G, 11ms, 100 shocks per axis) and MIL-STD 810G 514.6C-1 for vibration.
