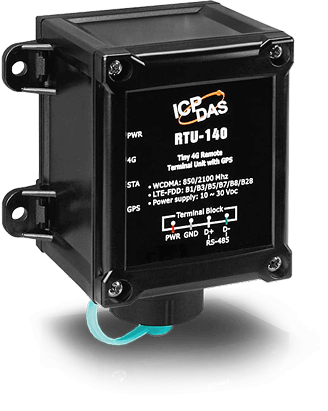

ICP DAS has developed an intelligent 4G gateway RTU-140, intended to create standalone M2M solutions on 3G/4G networks. The gateway is based on a high-performance 32-bit CPU and allows you to connect up to 3 Modbus RTU devices via RS-485.
The gateway automatically transmits data to the remote M2M RTU Center at a predetermined time interval. To build a remote control system for devices, ICP DAS offers several software tools: M2M RTU Center, Win32 API M2M RTU library and OPC server for connecting to SCADA.
The gateway also allows you to record I/O data and GPS signals to a Micro SD card. To prevent loss of efficiency of the gateway, you can install an external lithium battery.

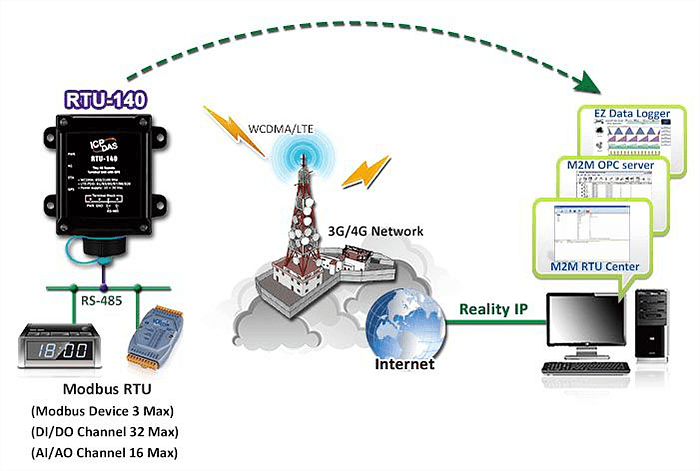

The scheme of operation of the 4G gateway RTU-140 is shown in the picture.

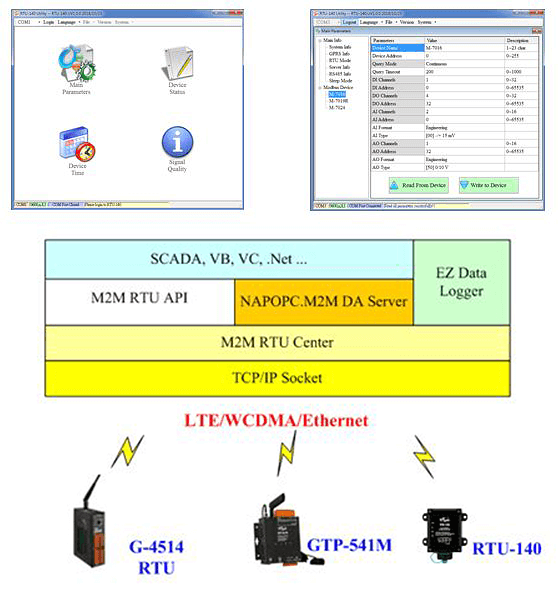

RTU-140 software:
- M2M RTU Center. software is designed for easy interaction of the gateway with M2M (Machine to Machine) devices
- M2M RTU API. library is a software package for M2M RTU series products: G-4514-4G RTU, GT-540-3GWA, RTU-140 and others. Convenient API allows programmers to create programs in VC, VB, BCB and Visual Studio.Net
- NAPOPC.M2M DA Server. is an OPC server that allows you to connect M2M gateways to SCADA systems via the OPC 2.0 protocol
- Ez Data Logger. software allows you to create a small data collection system even without any programming skills and to display parameters on a screen in a convenient format

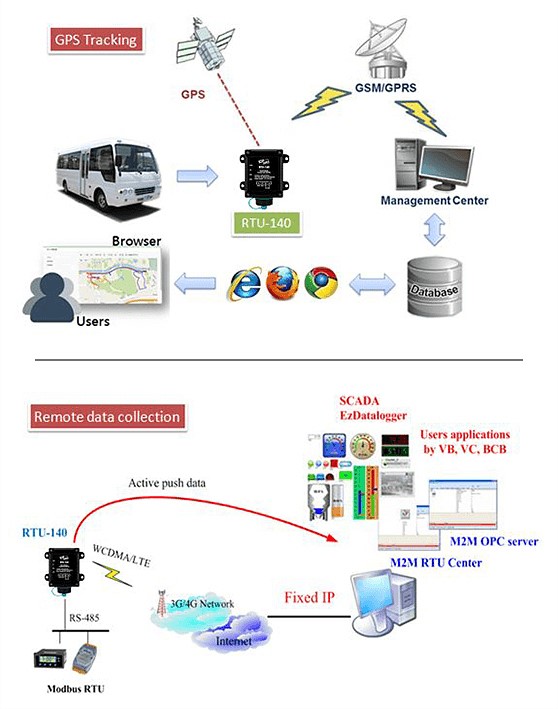

RTU-140 gateway can be used to build transport solutions or stationary measuring systems.
