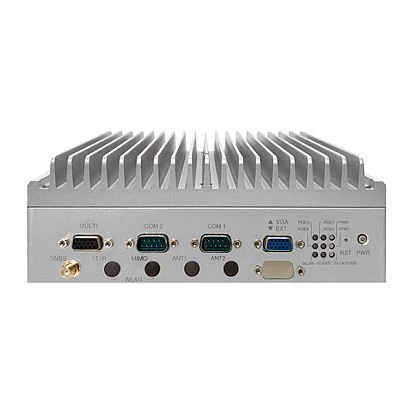

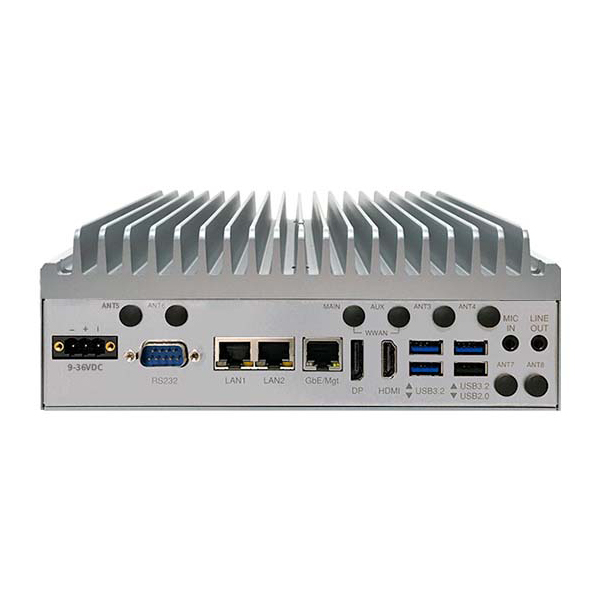

VTC-7260-Series
NEXCOM
ART. NR.:: 57540100
Vehicle Computer, Intel 11th gen Core i7/i5 CPU, up to 64GB DDR4 RAM, VGA, DP, HDMI, 2x2.5GbE LAN, 1xGbE LAN, 4xUSB, 3xCOM, 1x8-bit DIO, 1x2.5" Drive Bay, 1xmSATA, GPS, 2xSIM, 3xM.2, 1xCAN, 9..36VDC-in, -30..65C Wide temp.
Preis auf Anfrage
Verfügbar
Verfügbar
Aufbau
Gehäuse
Metallgehäuse
Typ
Lüfterlos
CPU
CPU Generation/Familie
Tiger Lake
Socket
FCBGA 1449
Chipsatz
Chipsatz
Intel SoC
Speicher
Socket Typ
2xSODIMM
ECC
Yes
Maximum Speicher
64 GB
Bauweise
herausnehmbar
Grafik
Grafikcontroller
integriert im Prozessor, Intel Iris Xe Graphics
Ethernet
Controller Typ
Intel i225IT
Ethernet gesamt
3
10/100/1000 Mbit/s
1
2,5 Gbit/s
2
Wi-Fi
WLAN IEEE-Norm
Yes
Schnittstellen Seriell / Parallel
COM gesamt
4
RS-232
1
RS-232/422/485
2
USB gesamt
6
USB 2.0
1
Digital Eingang / Ausgang
Gesamtanzahl
8
Industrie Protokolle
CAN Port
1
Laufwerksschächte
2.5" intern
1
Steckplätze
Gesamtanzahl
5
M.2
3
Mini-PCIe/Mini Card
2
Schnittstellen
Schnittstellen
3xDB9, DB15 VGA, HDMI, 3xRJ45 Ethernet, 4xUSB, Mic In, Line Out, Display port, SIM Card Slot, DC input (terminal block)
Software
Betriebssystemkompatibilität
Windows 10 IoT Enterprise, Windows 10, Ubuntu 18.04 LTS, Windows 11
Maße und Gewicht
Breite
210 mm
Höhe
75 mm
Tiefe
173 mm
Betriebsbedingungen
Vibration
MIL-STD-810H, 514.8C Procedure 6, Category 4; IEC 60068-2-64: 2.0g@5~500Hz
Schock
MIL-STD-810G, 516.6 Procedure I, trucks and semi-trailers=40g; Crash hazard: Procedure V, ground equipment=75g
Normen und Zertifikate
Zertifizierungen
CE, FCC Class A
MIL-STD-810
MIL-STD-810G Test Method 516.6 Shock, MIL-STD-810H Test Method 514.8 Vibration
Automotive
e13 Mark
Maße
Bruttogewicht
4 kg
Nettogewicht
3.1 kg
