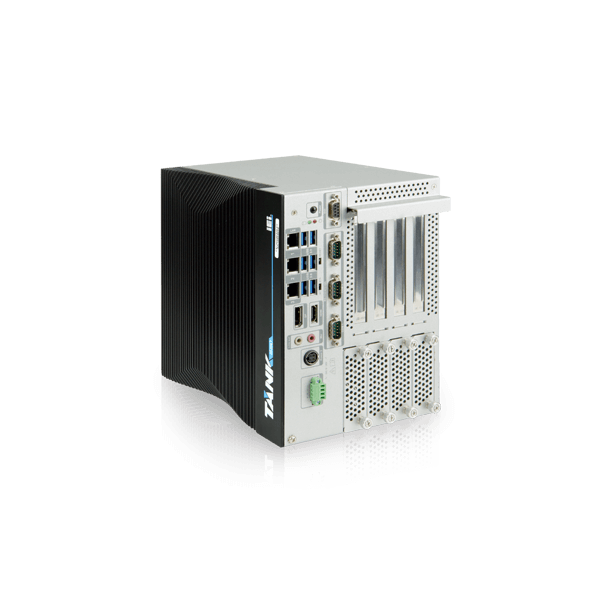

TANK-880-Q370-i7R/8G/4A

Fanless Embedded System, Intel Core i7-9700TE 1.8-3.8GHz CPU, Intel Q370 Chipset, 8GB DDR4, HDMI/DP, 3xGb LAN, 3xCOM, DIO, 6xUSB 3.2, 4x2.5" SATA, Audio, 1xPCIe x16, 1xPCIe x1, 2xPCIe x4, 3xM.2, 1x mPCIe, 9...36V DC-IN, -20...60C

Preis auf Anfrage ()
Stk.
Bestellen
Zu den Favoriten hinzufügen Aus den Favoriten entfernen
Auf die Vergleichs Vergleichen
Hersteller:
IEI
Gehäuse:
Aluminiumgehäuse
Einbaumöglichkeit:
Einbau, Desktop, Wall
Installierter Prozessor:
Intel Core i7-9700TE
Typ:
Lüfterlos
Betriebssystemkompatibilität:
Linux OS, Windows IoT Enterprise 10, Windows 10
Temperatur:
-20 ... 60 °C
Spezifikationen
Aufbau
Gehäuse:
Aluminiumgehäuse
Einbaumöglichkeit:
Einbau, Desktop, Wall
CPU
Installierter Prozessor:
Intel Core i7-9700TE
Socket:
CPU onboard
Frequenz:
1.8 GHz (up to 3.8GHz)
Chipsatz
Chipsatz:
Intel Q370
Speicher
Speichertyp:
DDR4 RAM
Socket Typ:
2xSODIMM 260-pin
Standard Onboard Speicher:
8 GB
Bauweise:
herausnehmbar
Maximum Speicher:
64 GB
Grafik
Grafikcontroller:
integriert im Prozessor
Netzwerk Adapter
Controller Typ:
Intel i210, Intel I219
Ethernet gesamt:
3
10/100/1000 Mbit/s:
3
WLAN IEEE-Norm:
802.11b/g/n (optional)
Schnittstellen Seriell / Parallel
COM gesamt:
3
RS-232/422/485:
2 (w/2.5 kV isolation protection)
USB gesamt:
6
USB 3.0:
6
Digital Eingang / Ausgang
Gesamtanzahl:
8
Eingang:
4
Ausgang:
4
Audio
Audio Controller:
Intel HD Audio
Speicher Controller
SATA 3 Channels:
4
RAID SATA 3:
0, 1
Speichermedium
mSATA Unterstützung:
Yes
Laufwerksschächte
Gesamtanzahl:
4
2.5" intern:
4
Steckplätze
Gesamtanzahl:
8
PCI Express x1:
1
PCI Express x4:
2
PCI Express x16:
1
Mini-PCIe/Mini Card:
1 (1 x Full-size (PCIe/ USB 2.0/ SATA))
M.2:
3 (1 x 2230 A key (PCIe x2/ USB2.0) 2 x 2280 M key (PCIe x2))
Watchdog
Programmierbar:
Yes
Reaktionszeit:
1 ~ 255 sec/min
Kühlung
Typ:
Lüfterlos
Schnittstellen
Schnittstellen:
3xDB9, HDMI, 3xRJ45 Ethernet, 6xUSB, Mic In, Line Out, Display port, DB9 DIO, 4-pin DC input, 12V DC Output
Systemleistung
Eingangsspannung DC:
9 ... 36 V (Internal Power Output 12V up to 10A)
Energieverbrauch:
103 W
Netzteil
Art der Spannungsversorgung:
External power adapter AC/DC
Software
Betriebssystemkompatibilität:
Linux OS, Windows IoT Enterprise 10, Windows 10
Maße und Gewicht
Breite:
169 mm
Höhe:
255.2 mm
Tiefe:
225 mm
Betriebsbedingungen
Temperatur:
-20 ... 60 °C (with air flow (SSD))
Feuchtigkeit:
10 ... 95 % (non-condensing)
Schock:
5G, 11ms
Normen und Zertifikate
Zertifizierungen:
CE/FCC
MIL-STD-810:
MIL-STD-810G Test Method 514.6 Vibration
Hersteller
Name:
IEI
Dokumentation

Größe

Gewicht

Bruttogewicht: 6.5 kg
Nettogewicht: 4.5 kg
