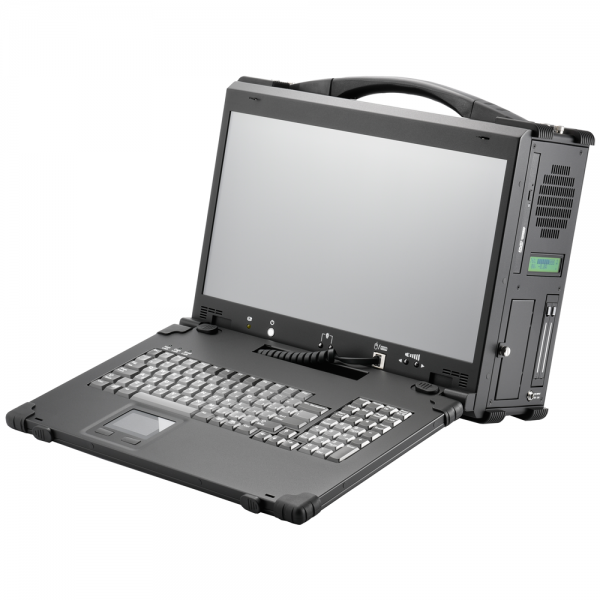

iROBO-ARP840-UHD-U4M82

Industrie Portable Workstation, 17.3" 3840x2160 TFT LCD, Intel Core i5-8500 3.5 GHz, Intel Q370 Chipset, 8GB DDR4 RAM (max.64GB), 128GB SSD, VGA/DVI-D for 2nd display, 2xGbit LAN, 1xCOM, 8xUSB, 1xMini-PCIe, 1xPCIe x16, 1xPCIe x4, 2xPCI, 600W PSU

Preis auf Anfrage * - Mit der gewählten Konfiguration ()
Stk.
Bestellen
Zu den Favoriten hinzufügen Aus den Favoriten entfernen
Auf die Vergleichs Vergleichen
Hersteller:
IPC2U GmbH
Gehäuse:
Aluminiumgehäuse
Bildschirmtyp:
LCD TFT
Diagonale:
17.3 "
Maximale Auflösung:
3840 x 2160 Dots
Installierter Prozessor:
Intel Core i5-8500
Chipsatz:
Intel Q370
Speichertyp:
DDR4 2133
COM gesamt:
5
Spezifikationen
Aufbau
Gehäuse:
Aluminiumgehäuse (Construction with shock absorbing rubber corners)
Einbaumöglichkeit:
Desktop, Portable
Display
Bildschirmtyp:
LCD TFT
Diagonale:
17.3 "
Maximale Auflösung:
3840 x 2160 Dots
Seitenverhältnis:
16:9
Hintergrundbeleuchtung:
LED
CPU
CPU Generation/Familie:
Coffee Lake
Installierter Prozessor:
Intel Core i5-8500
Socket:
LGA1151
Chipsatz
Chipsatz:
Intel Q370
Speicher
Speichertyp:
DDR4 2133
Socket Typ:
4xDDR4 DIMM 288pin
Bauweise:
herausnehmbar
Maximum Speicher:
64 GB
Grafik
Grafikcontroller:
integriert im Prozessor
Schnittstellen Seriell / Parallel
COM gesamt:
5
RS-232:
4 (only optional internal header)
RS-232/422/485:
1 (I/O shild DB9)
Netzwerk Adapter
Controller Typ:
Intel i211-AT 10/100/1000 Mbps, Intel i219-LM
Ethernet gesamt:
2
10/100/1000 Mbit/s:
2
Digital Eingang / Ausgang
GPIO:
Yes (internal)
Steckplätze
PCI Express x1:
1 (support full profile add-on cards up to 338.5mm )
PCI Express x16:
1 (support full profile add-on cards up to 338.5mm )
PCI:
2
Mini-PCIe/Mini Card:
1 (Full-Size, support USB/PCIe/mSATA)
Laufwerksschächte
5.25" extern:
2
2.5" intern:
1
Status LEDs / Schalter
LED:
1xHDD LED, Power LED
Schalter:
On/Off, 1xReset
Schnittstellen
Schnittstellen:
DB9, DVI-D, DB15 VGA, PS/2 Keyboard/Mouse, 2xRJ45 Ethernet, 6xUSB, Mic In, Line Out (DP connected with Display)
Netzteil
Ausgangsleistung:
600 W
Eingangsspannung AC:
100 ... 240 V
Betriebsbedingungen
Temperatur:
0 ... 50 °C
Feuchtigkeit:
10 ... 90 %
Maße und Gewicht
Breite:
417 mm
Höhe:
350 mm
Tiefe:
186 mm
Hersteller
Name:
IPC2U GmbH
Optionen

Konfiguration

{{option[key].COUNT}}
{{option[key].name}} {{option[key].name}}
Preis auf Anfrage ()
RAM Einzelpreis Gesamtpreis
16GB DDR4 DIMM 2400MHz Industrial Innodisk Memory Non-ECC 2R 1Gx8, IC Samsung, Standard Temperature 0..+85C
HDD SATA 3.5" Einzelpreis Gesamtpreis
nicht installiert
1TB 3.5" Hitachi Ultastar DC HA210 (WD Gold) 24x7, SATA3, 7.2k rpm, 128MB Cache HDD
2TB 3.5" Hitachi Ultastar DC HA210 (WD Gold) 24x7, SATA3, 7.2k rpm, 128MB Cache HDD
4TB 3.5" Hitachi Ultastar DC HC310 (WD Gold) 24x7, SATA3, 7.2k rpm, 256MB Cache HDD
6TB 3.5" Hitachi Ultastar DC HC310 (WD Gold) 24x7, SATA3, 7.2k rpm, 256MB Cache HDD
8TB 3.5" Hitachi Ultastar DC HA320 (WD Gold) 24x7, SATA3, 7.2k rpm, 256MB Cache HDD
HDD SSD 2.5" Einzelpreis Gesamtpreis
nicht installiert
128GB Innodisk 2.5" 3MG2-P SSD, SATA 3, MLC, Toshiba IC, High IOPS, R/W 520/300 MB/s, Standard Temperature 0...+70 C
64GB 2.5" Innodisk 3MG2-P SSD, SATA 3, MLC, IC Toshiba, R/W 520 / 180 MB/s, Standard Temperature 0..+70 C
256GB Innodisk 2.5" 3MG2-P SSD, SATA 3, MLC, IC Toshiba, High IOPS, R/W 520/350 MB/s, Standard Temperature 0...+70 C
512GB Innodisk 2.5" 3MG2-P SSD, SATA 3, MLC, Toshiba 15nm, R/W 520 / 450 MB/s, Standard Temperature 0..+70 C
Erweiterungskarte Einzelpreis Gesamtpreis
nicht installiert
PCI-Express x1 Card, Real-Time-Ethernet PROFINET / ETGERCat/ Ethernet/IP / Sercos, 2xRJ45 10BASE-T/100BASE-TX, 2 GBit/s netX 500 Controller
PCI Express x1 Card, CANopen-Slave, 1x D-SUB9 male Connector, netX 100 Controller
PCI Express x1 Card, PROFIBUS DP-Slave, 1x D-SUB9 female Connector, netX 100 Controller
Erweiterungskarte 1 Einzelpreis Gesamtpreis
nicht installiert
PCI-Express x1 Card, Real-Time-Ethernet PROFINET / ETGERCat/ Ethernet/IP / Sercos, 2xRJ45 10BASE-T/100BASE-TX, 2 GBit/s netX 500 Controller
PCI Express x1 Card, CANopen-Slave, 1x D-SUB9 male Connector, netX 100 Controller
PCI Express x1 Card, PROFIBUS DP-Slave, 1x D-SUB9 female Connector, netX 100 Controller
Prozessor Einzelpreis Gesamtpreis
Intel Celeron G4900 3.1GHz 8th Gen Coffe Lake CPU, Dual Core, 2MB Cache, LGA1151, 54W, Intel UHD Graphics 610, Long-term Availability
Intel Pentium Gold G5400 3.7GHz 8th Gen Coffe Lake CPU, Dual Core, 4MB Cache, LGA1151, 58W, Intel UHD Graphics 610, Long-term Availability, CM8068403360112
Intel 4-Core i3-8100 3.6GHz 8th Gen Coffe Lake CPU, Quad Core, 6MB Cache, LGA1151, 65W, Intel UHD Graphics 630, Long-term Availability, CM8068403377308
Intel Core i5-8500 3.0GHz 8th Gen Coffe Lake CPU, Quad Core, 9MB Cache, LGA1151, 65W, Intel UHD Graphics 630, Long-term Availability, CM8068403362607
Intel Core i7-8700 3.2GHz 8th Gen Coffe Lake CPU, Quad Core, 12MB Cache, LGA1151, 65W, Intel UHD Graphics 630, Long-term Availability, CM8068403358316
Garantie Einzelpreis Gesamtpreis
3 Jahre erweiterte Garantie
2 Jahre Garantie inklusive
Betriebssystem Einzelpreis Gesamtpreis
nicht installiert
MS Windows 10 PRO 64bit DVD OEM German (DE) / Licence Support EN / FR
MS Windows 10 PRO 64bit DVD OEM French (FR)
MS Windows 10 IoT Enterprise 2016 LTSB (EN/DE/FR), pre-installed 64-bit, Embedded OEM licenses Key (ePKEA), High End for Core i7/ Xeon
MS Windows 10 IoT Enterprise 2016 LTSB (EN/DE/FR), pre-installed 64-bit, Embedded OEM licenses Key (ePKEA), Value, for Core i3/i5
MS Windows 10 IoT Enterprise 2016 LTSB (EN/DE/FR), pre-installed 64-bit, Embedded OEM licenses Key (ePKEA), Entry, for Atom, Celeron, Pentium
MS Windows 10 IoT Enterprise 2019 LTSC (EN/DE/FR), 64-bit, Embedded OEM license Key (ePKEA) for activation on pre-installation, Entry for most of Atom, Celeron N/J/G/3000, Pentium N/J series
MS Windows 10 IoT Enterprise 2019 LTSC (EN/DE/FR), 64-bit, Embedded OEM license Key (ePKEA) for activation of pre-installation, Value for Core i3/i5/M, Pentium, Celeron, Atom C2000/C3338/S1260/S1240/S1220
MS Windows 10 IoT Enterprise 2019 LTSC (EN/DE/FR), 64-bit, Embedded OEM license Key (ePKEA) for activation on pre-installation, High End for Core i7/ Xeon, AMD FX, Ryzen 7 Series
Gehäuse Einzelpreis Gesamtpreis
17.3'' TFT LCD, 3840x2160, Display Port interface, 2x5.25'' / 1x 2.5'' / 5.25" Slim Optical Drive Bays, Carrying Case
German GR, 104-keys, QWERTZ, 17.3'' TFT LCD, 3840x2160, Display Port interface, 2x5.25'' / 1x 2.5'' / 5.25" Slim Optical Drive Bays, Carrying Case, 1U single 600W PSU
France FR, 104 keys, AZERTY, 17.3'' TFT LCD, 3840x2160, Display Port interface, 2x5.25'' / 1x 2.5'' / 5.25" Slim Optical Drive Bays, Carrying Case, 1U single 600W PSU
English US, 104-keys, QWERTY, 17.3'' TFT LCD, 3840x2160, Display Port interface, 2x5.25'' / 1x 2.5'' / 5.25" Slim Optical Drive Bays, Carrying Case, 1U single 600W PSU
Spain SP, 104 keys, QWERTY, 17.3'' TFT LCD, 3840x2160, Display Port interface, 2x5.25'' / 1x 2.5'' / 5.25" Slim Optical Drive Bays, Carrying Case, 1U single 600W PSU

Größe

Gewicht

Bruttogewicht: 20.5 kg
